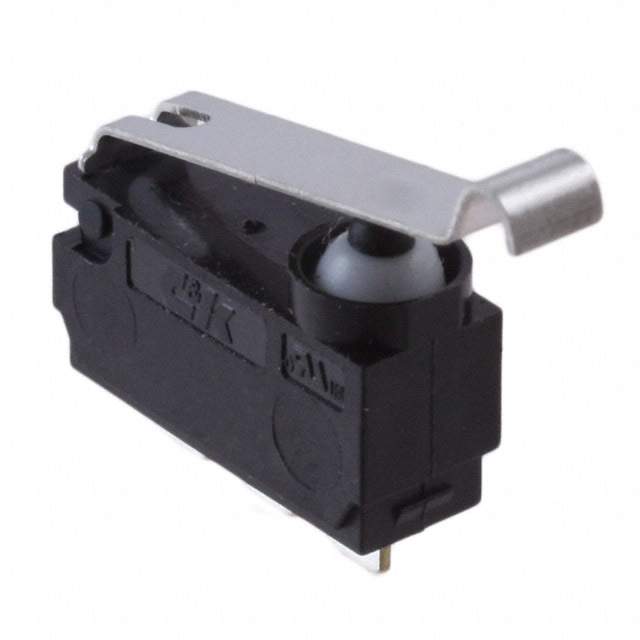

Switch Snap Action N.O./N.C. SPDT Simulated Roller Lever Solder 3A 125VAC 12VDC 1.57N Screw Mount
A little more than half an inch long and less than a quarter inch wide, this SPDT snap-action switch can be found in test equipment, security systems, communication equipment and consumer electronics. Switch mounting is PC through-hole.
立创商城:
ZMSL03130T11SSC
得捷:
SWITCH SNAP ACTION SPDT 3A 125V
贸泽:
Basic / Snap Action Switches Detect SPDT 3A 160gf
艾睿:
Switch Snap Action N.O./N.C. SPDT Simulated Roller Lever Solder 3A 125VAC 12VDC 1.57N Screw Mount
Allied Electronics:
Switch, Snap; Sealed; SPDT; 3 Amps; Simulated Roller Actuated; Solder terminals
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Simulated Roller Lever Solder 3A 125VAC 12VDC 1.57N Screw Mount
Electro Sonic:
Subminiature Snap-acting Switch IP 65
额定电压DC 12 V
接触器类型 Roller Lever
额定电压AC 125 V
额定电流 3 A
触点类型 SPDT
额定电流Max 3A @125VAC, 12VDC
工作温度Max 120 ℃
工作温度Min -40 ℃
额定电压DC Max 12 V
额定电压AC Max 125 V
安装方式 Screw, Solder
封装 -
高度 20.15 mm
封装 -
触点材质 Fine Silver
工作温度 -40℃ ~ 120℃
产品生命周期 6000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ZMSL03130T11SSC C&K Components | 当前型号 | 当前型号 |
SL03 ITT电子 | 功能相似 | ZMSL03130T11SSC和SL03的区别 |
