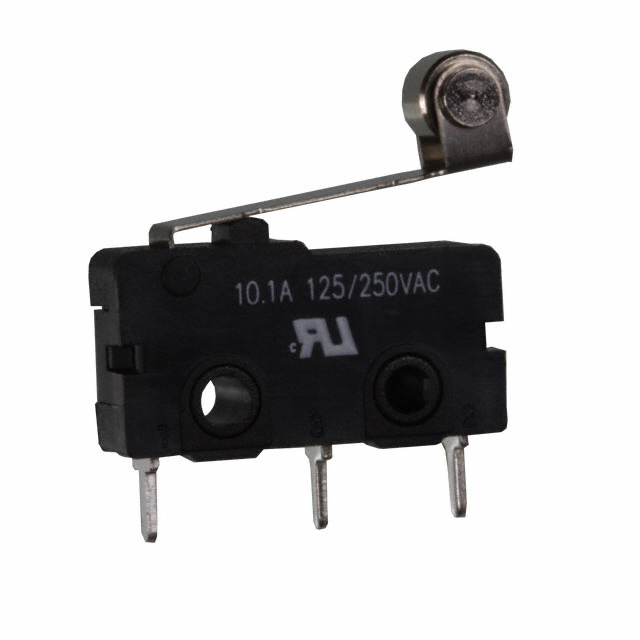

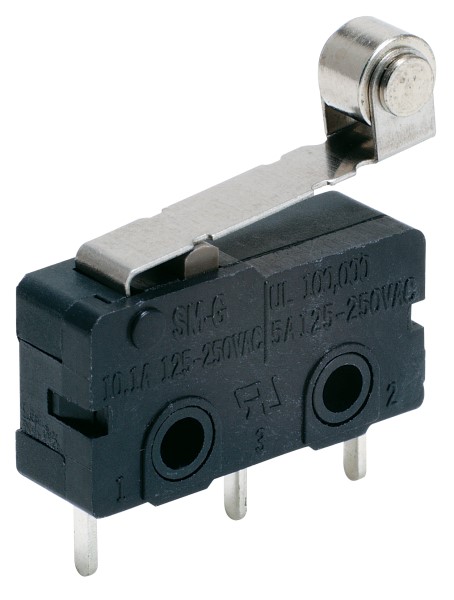

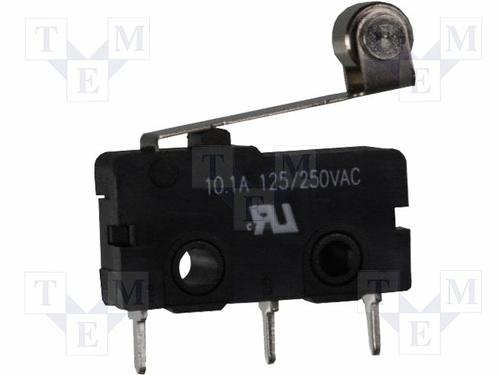

HONEYWELL ZM90G20F01 微动开关, ZM系列, SPDT, 焊接, 10.1 A, 250 VAC, 30 VDC
The is a single-pole double-throw SPDT sub-miniature Basic Switch with roller lever actuator and PCB straight terminations. The MICRO SWITCH™ ZM series sub-miniature basic switch comes with polyamide housing and silver-plated contact. It is used for simple or precision ON/OFF application needs. This switch combines small size and lightweight with ample electrical capacity and long life.
- .
- -40 to 85°C Operating temperature range
Do not use this product as safety or emergency stop device or in any other application where failure of the product could result in personal injury.
额定电压DC 30 V
接触器类型 Roller Lever
额定电压AC 250 V
额定电流 10.1 A
触点类型 SPDT
额定电流Max 10.1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Through Hole
封装 Nylon Polyamide
长度 19.8 mm
高度 10.6 mm
封装 Nylon Polyamide
触点材质 Silver Alloy
工作温度 -40℃ ~ 120℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
制造应用 Clock & Timing, 计算机和计算机周边, Computers & Computer Peripherals, 工业, 测试与测量, Medical, 通信与网络, Test & Measurement, 医用, Commercial, 商业, Communications & Networking, 消费电子产品, Industrial, 时钟与计时, HVAC, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2017/07/07
ECCN代码 EAR99
HTS代码 8536509055
