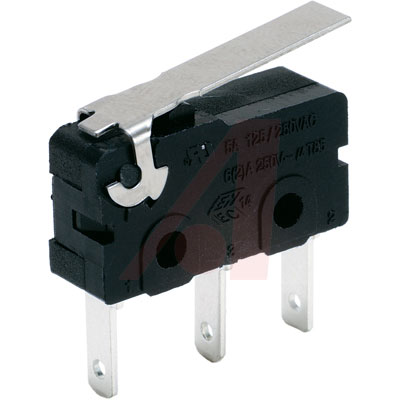

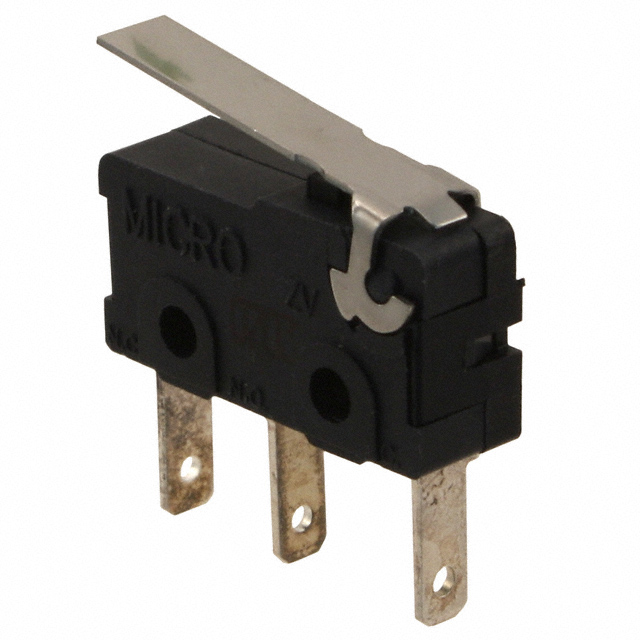

基本/快动开关 SPDT 6A 62A 250 V NO SEAL STRT LEVER
250 VAC, 6 A, SPDT Switches Type, Subminiature Basic Switches
Z Series Basic Switches are used for simple on/off application needs. These switches are available in four types.** Features**
* Various Voltage and Current Ratings
* Straight, Roller, Simulated Roller, Special Actuators
* Variety of Integral and Snap-On Actuators
* Solder, PCB Straight and Angled, Quick Connect, Special Terminations
** Specifications
**
* Operating Temperature: –13° to +185°F
接触器类型 Straight Lever
额定电流 6 A
触点类型 SPDT
针脚数 2
额定电流Max 6A @250VAC
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 250 VAC
额定电压AC Max 250 V
安装方式 Chassis, Quick Connect
长度 19.8 mm
高度 10.6 mm
触点材质 Silver Cadmium Oxide
工作温度 -25℃ ~ 85℃
外壳材质 Nylon
产品生命周期 10000000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509055
