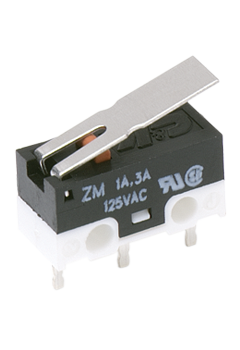

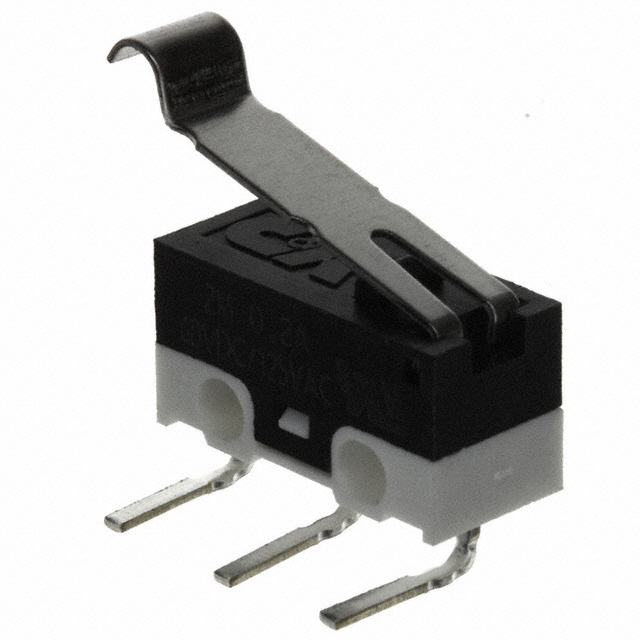

C & K COMPONENTS ZMCJM9T13R Microswitch, ZM Series, SPDT, Through Hole, 100mA, 60VDC
The ZM series subminiature Snap-acting Switch for alarm and PCB detection. It comes with nylon 6/6 case and cover, silver alloy contacts, SUS spring and brass-Ag plated terminals.
额定电压DC 60 V
接触器类型 Roller Lever
额定电流 200mA DC
触点类型 SPDT
额定电流Max 0.2A @60VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 60 V
额定电压AC Max 125 V
安装方式 Through Hole
封装 -
长度 12.8 mm
宽度 12.8 mm
高度 5.8 mm
封装 -
触点材质 Silver Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
