Z0103NN0,135

逻辑电平四象限三端双向可控硅 Logic level four-quadrant triac

General description

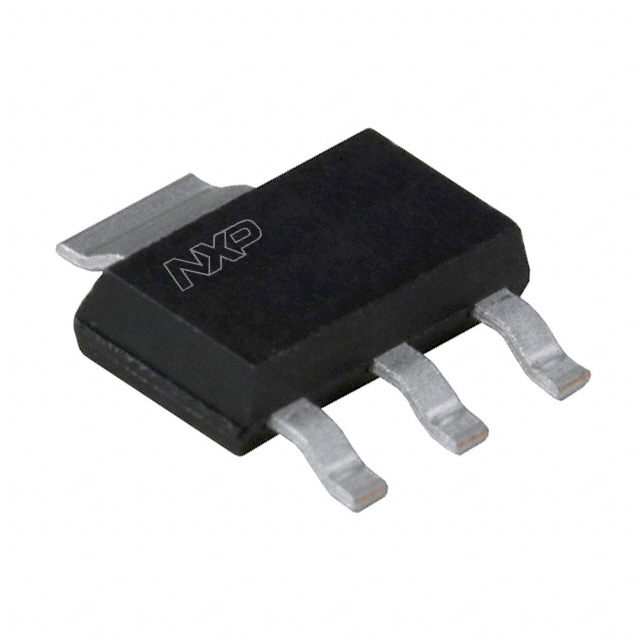

Planar passivated very sensitive gate four quadrant triac in a SOT223 SC-73 surface-mountable plastic package intended for applications requiring enhanced immunity to noise and direct interfacing to logic level ICs and low power gate drivers.

Features and benefits

■ Direct interfacing to logic level ICs

■ Enhanced current surge capability

■ Enhanced noise immunity

■ High blocking voltage of 800V

■ Planar passivated for voltage ruggedness and reliability

■ Surface-mountable package

■ Triggering in all four quadrants

■ Very sensitive gate in four quadrants

Applications

■ General purpose low power motor control

■ Home appliances

■ Industrial process control

■ Low power AC Fan controllers
