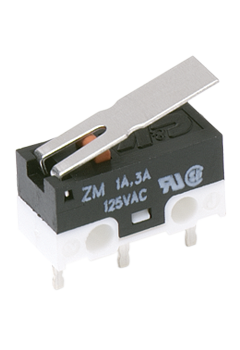

Switch Snap Action N.O./N.C. SPDT Leaf Lever PC Pins 3A 125VAC 1.47N Thru-Hole
Subminiature Snap-acting Switch
立创商城:
ZMCJF7L0T
艾睿:
The ZMCJF7L0T snap-action switch from C&a;K Components makes opening or closing your circuit a fast operation. It has a SPDT configuration. This device has a maximum current rating of 3 A @ 125VAC 30VDC. This snap action switch has an operating temperature range of -30 °C to 85 °C. The ZMCJF7L0T snap action switch has a PC pin termination style. The maximum AC voltage rating is 125 VAC. This product is 13.68 mm long, 11 mm tall and 5.8 mm deep.
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Leaf Lever PC Pins 3A 250VAC 1.47N Thru-Hole
Verical:
Switch Snap Action N.O./N.C. SPDT Leaf Lever 3A 125VAC 1.47N Thru-Hole PC Pins Bulk
Newark:
# C & K COMPONENTS ZMCJF7L0T Detect
MASTER:
Subminiature Snap-acting Switch
Online Components:
Subminiature Snap-acting Switch
Electro Sonic:
Subminiature Snap-acting Switch
触点电镀 Gold
接触器类型 Straight Lever
额定电流 1.00 A
方向 Vertical
触点类型 SPDT
额定电流Max 3A @125VAC, 30VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压AC Max 125 V
安装方式 Through Hole
封装 -
长度 12.8 mm
宽度 5.80 mm
高度 11 mm
封装 -
触点材质 Silver Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 15000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
