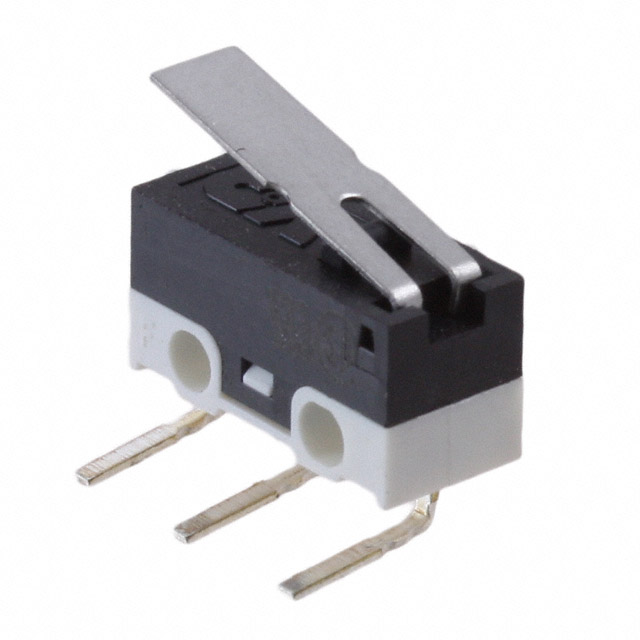

Switch Snap Action N.O./N.C. SPDT Leaf Lever PC Pins 3A 125VAC 1.47N Thru-Hole
Subminiature Snap-acting Switch
立创商城:
ZMCJF7L0R
艾睿:
Switch Snap Action N.O./N.C. SPDT Leaf Lever 3A 125VAC 1.47N Thru-Hole PC Pins Bulk
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Leaf Lever PC Pins 3A 250VAC 1.47N Thru-Hole
Verical:
Switch Snap Action N.O./N.C. SPDT Leaf Lever 3A 125VAC 1.47N Thru-Hole PC Pins Bulk
Newark:
# C & K COMPONENTS ZMCJF7L0R SUBMINIATURE SNAP-ACTING SW
MASTER:
Subminiature Snap-acting Switch
Online Components:
Subminiature Snap-acting Switch
Electro Sonic:
Subminiature Snap-acting Switch
触点电镀 Gold
接触器类型 Straight Lever
额定电压AC 125 V
额定电流 3A AC
方向 Right Angle
触点类型 SPDT
额定电流Max 3A @125VAC, 30VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压AC Max 125 V
安装方式 Through Hole
封装 -
长度 12.8 mm
宽度 5.80 mm
高度 5.8 mm
封装 -
触点材质 Silver Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 15000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509040
