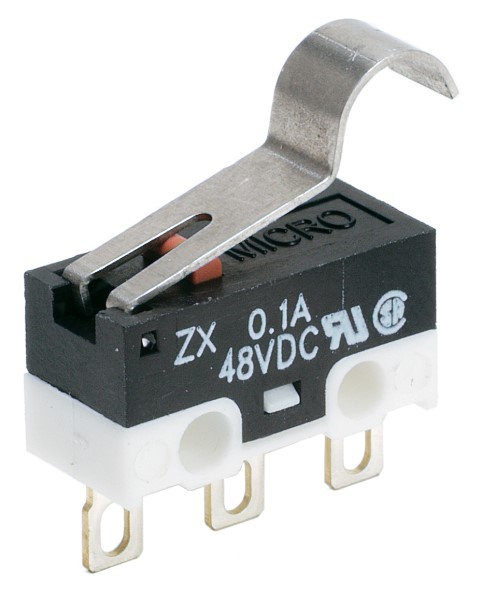

MICRO SWITCH™ Subminiature Basic Switches: ZX Series, Single Pole Double Throw SPDT, 48VDC, 0.1A 125VAC, Gold-Plated Contacts, ...
MICRO SWITCH™ Subminiature Basic Switches: SX Series, Single Pole Double Throw SPDT, 7 A at 250 Vac, Pin Plunger Actuator, Solder Termination
Product Highlights
Subminiature: 6,5 mm H x 5,7 mm W x 12,7 mm L [0.26 in H x 0.22 in W x 0.50 in L]
Choice of low energy or power duty electrical ratings gold-plated or silver contacts
Single pole double throw SPDT circuitry or single pole single throw SPST circuitry available
Choice of 0.1 A or 3 A ratings
Choice of actuation, termination and operating characteristics
Polybutylene terephthalate housing material
Potential Applications:
Appliances
Vending machines
Timing devices
Office equipment
Computer/business equipment
Test instruments
Medical/dental equipment
Communications equipment
HVAC equipment
Manually operated devices
Valves
额定电压DC 48 V
接触器类型 Roller Lever
额定电压AC 125 V
额定电流 100 mA
触点类型 SPDT
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 48 V
安装方式 Solder Lug, Chassis
长度 12.8 mm
高度 6.5 mm
触点材质 Silver
工作温度 40℃ ~ 120℃
外壳材质 Nylon
产品生命周期 1000000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509055
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ZX10E10E01 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
D2F-01L3-D3 欧姆龙 | 功能相似 | ZX10E10E01和D2F-01L3-D3的区别 |
D2F01L3D 欧姆龙 | 功能相似 | ZX10E10E01和D2F01L3D的区别 |
