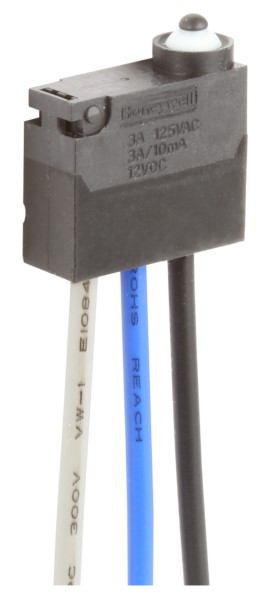

ZD30SA01EA

ZD30SA01EA图片1
ZD30SA01EA图片2
ZD30SA01EA图片3
ZD30SA01EA图片4
ZD30SA01EA图片5
ZD30SA01EA概述

MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15A 125/250VAC, Pin Plunger, Special Removable Binding Head Combination Screw Termination, Terminal Blades Formed Down 90°, Manual Reset on Bottom of Case, Mounting Holes will Accept Pins or Screws, UL, CSA

MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15 A 125/250 Vac, Pin Plunger, Special Removable Binding Head Combination Screw Termination, Terminal Blades Formed Down 90°, Manual Reset on Bottom of Case, Mounting Holes will Accept Pins or Screws, UL, CSA

Product Highlights

Subminiature: 10,6 mm H x 6,35 mm W x 19,8 mm L [0.42 in H x 0.25 in W x 0.78 in L]

Choice of low energy or power duty electrical ratings gold-plated or silver contacts

Single pole double throw SPDT circuitry

Choice of 0.1 A or 3 A ratings

Choice of actuation, termination and operating characteristics

Mounting posts for quick installation

PBT polyester housing material

Potential Applications:

Automotive, truck, and boat wire harnesses

Throttle control

Indicator lights

Applications where a pre-wired sealed on/off switch is required

ZD30SA01EA中文资料参数规格
技术参数

接触器类型 Pin Plunger

触点类型 SPDT

额定电流Max 3A @125VAC

工作温度Max 85 ℃

工作温度Min -40 ℃

物理参数

外壳材质 Polyester

其他

产品生命周期 6000 Cycles

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509055

数据手册

在线购买ZD30SA01EA
型号: ZD30SA01EA
描述:MICRO SWITCH™ Premium Large Basic Switches: BZ Series, Single Pole Double Throw SPDT, 15A 125/250VAC, Pin Plunger, Special Removable Binding Head Combination Screw Termination, Terminal Blades Formed Down 90°, Manual Reset on Bottom of Case, Mounting Holes will Accept Pins or Screws, UL, CSA
