OMRON INDUSTRIAL AUTOMATION Z-15HW24-B 微动开关, 合页杆, SPDT 15A 250V

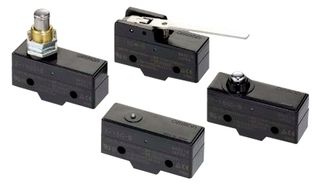

The is a single-pole double-throw SPDT general-purpose Basic Switch with screw terminals, a low-force hinge lever actuator and 0.25mm high-sensitivity, micro load contact gap. The basic switch boasting high precision and wide variety. A large switching capacity of 15A with high repeat accuracy. A series of molded terminal-type models incorporating safety terminal protective cover is available.
额定电压DC 30 V
接触器类型 Straight Lever
额定电压AC 125 V
额定电流 15A AC, 2A DC
触点类型 SPDT
额定电流Max 15A @250VAC, 14VDC
工作温度Max 80 ℃
工作温度Min -25 ℃
安装方式 Chassis
封装 ThroughHole
长度 131.9 mm
宽度 17.45 mm
封装 ThroughHole
触点材质 Silver
工作温度 -25℃ ~ 80℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
