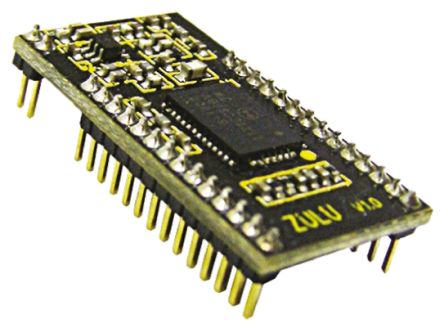

ZULU-T868

RF SOLUTIONS  ZULU-T868  射频模块, 遥测, 868MHZ, DIP, 2KM

The is a 868MHz radio telemetry module in DIP package. It provides a reliable transceiver based industrial remote switch with up to 2, 000 metres range. Two modules are combined to provide a simple network of radio switching. Each unit is supplied ready to operate, once paired with another module a remote control system is created connections for power, antenna and input/output are the only connections required. Each module can be set to act as a transmitter or receiver. A remote telemetry system is achieved when two modules are paired together, as transmitter ZuluTx and receiver ZuluRx. Each time an input changes on the ZuluTx, it will transmit the status of its inputs to the paired ZuluRxs. which will set its outputs to follow the ZuluTx Inputs and reply back with an acknowledge signal. Once completed the modules will then go into sleep mode.

.

10 channel transceiver module

.

10 digital input/outputs

.

Two analogue inputs 10bit, outputs PWM

.

Receiver outputs follow transmitter inputs

.

Minimal external components

.

Direct Led drive shows data reception

.

Secure data protocol

.

Ultra low power 2.2V to 3.6V operation

.

Easy pairing process

.

One to one operation
