ZULU-M868

RF SOLUTIONS  ZULU-M868  射频模块, 调制解调器, 868MHZ, DIP, 2KM

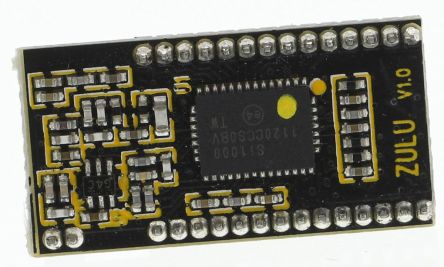

The is a 868MHz wireless serial data radio modem module in DIP package. The ZULU modem module is a highly integrated RF modem and intelligent controller with simple interface to achieve a wireless serial data link for data over 2Km range. Range may be further extended with suitable antenna. The user interface is standard RS232 style control operating at low voltage. All RF operation is automatically controlled with error checking etc so the Zulu can be treated as a simple communications device. Because of their small size and low power requirements this module is ideal for use in many application.

.

Serial data interface with handshake

.

Host data rates up to 38,400Baud

.

RF data rates to 56Kbps

.

Range up to 2Km

.

Minimal external components

.

Direct led drive shows data flow

.

8 user selectable channels

.

Secure data protocol

.

Ultra low power 2.2V to 3.6V operation

.

121dBm receiver sensitivity
