RF SOLUTIONS ZULU-868 射频收发器模块, 868MHZ, 2KM

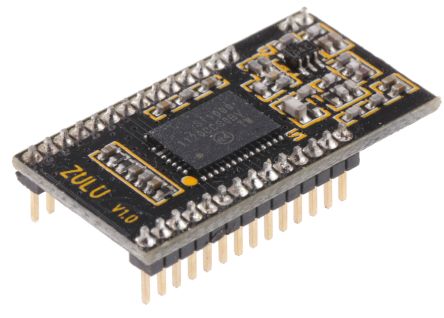

The is a 868MHz RF transceiver module in DIP package. This module provides a highly integrated plug and play radio solution. Based on the Silicon Labs Si1000 chipset, the Zulu transceiver integrates a high power RF transmitter +20dBm with high sensitivity receiver -121dBm and an 8051 microcontroller. The Si1000 is a fully integrated mixed signal system on a chip MCU. It has industry"s lowest power consumption in active, sleep and deep sleep modes. This ultra low power consumption is achieved without any compromises in wireless transceiver performance. Having the lowest system power allows longer battery life, higher product performance and lower system cost.
- .
- RF transceiver combined with on board 8051 microcontroller
- .
- Range up to 2Km
- .
- Ultra low power, 1.8V to 3.6V operation
- .
- Frequency hopping capability
- .
- Less than 600nA with RTC running
- .
- Less than 1µA with RTC running and radio state retained
- .
- Two built in brown out detectors cover sleep and active modes
- .
- FSK, GFSK, and OOK modulation
- .
- Auto frequency calibration AFC
- .
- On chip crystal tuning
ESD sensitive device, take proper precaution while handling the device.
