HIROSEHRS ZX62RD-AB-5P8 连接器, USB, 微型USB AB, USB 2.0, 插座, 5 路, 表面安装, 直角型

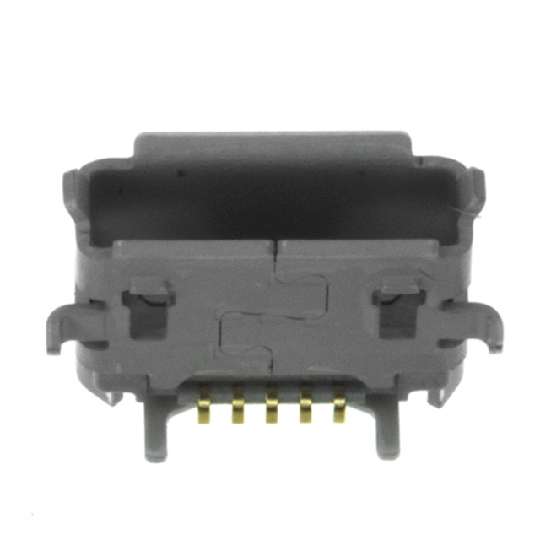

The is a right angle Micro USB Type-AB Receptacle with gold-plated copper contact. It supports USB 2.0 version and features 5 positions and surface mount. High-speed data transfer of 480Mbps. High durability while maintaining easy insertion/disconnection. Fully mated condition when mated with corresponding HRS connector is confirmed by a definite tactile sensation. It features LCP insulator and reverse through hole mounting style.
- .
- 30mR at 100mA Maximum contact resistance
- .
- 2pF Maximum capacitance
- .
- 10000-cycle Durability
触点数 5
极性 Female
触点电镀 Gold
排数 1
方向 Right Angle
针脚数 5
接触电阻 <30mΩ @100mA
拔插次数 10000
额定电压 30 VAC
安装方式 Surface Mount
封装 SMD
宽度 5.6 mm
封装 SMD
触点材质 Copper
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 计算机和计算机周边, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ZX62RD-AB-5P8 Hirose Electric 广濑 | 当前型号 | 当前型号 |
ZX62RD-AB-5P830 广濑 | 完全替代 | ZX62RD-AB-5P8和ZX62RD-AB-5P830的区别 |
