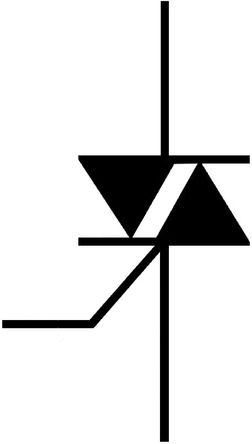

NXP Z0103MN,135. 双向晶闸管, 600V, 1A
The is a very sensitive gate TRIAC intended for use in applications requiring enhanced noise immunity, direct interfacing to logic ICs and low power gate drivers.
- .
- Direct interfacing to logic level ICs
- .
- Direct interfacing to low power gate drive circuits
- .
- High blocking voltage capability
- .
- Planar passivated for voltage ruggedness and reliability
- .
- Triggering in all four quadrants
针脚数 3
保持电流 7.00 mA
保持电流Max 7 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 3
封装 TO-261-4
长度 6.7 mm
宽度 3.7 mm
高度 1.7 mm
封装 TO-261-4
工作温度 125℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Motor Drive & Control, Automation & Process Control, HVAC, Industrial, Power Management, Industrial, Motor Drive & Control, HVAC, Auto, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
Z0103MN,135 NXP 恩智浦 | 当前型号 | 当前型号 |
Z0103MN 5AA4 意法半导体 | 功能相似 | Z0103MN,135和Z0103MN 5AA4的区别 |
L401E3 力特 | 功能相似 | Z0103MN,135和L401E3的区别 |
L401E5 力特 | 功能相似 | Z0103MN,135和L401E5的区别 |
