ZHCS400

DIODES INC.  ZHCS400  小信号肖特基二极管, 单, 40 V, 400 mA, 500 mV, 3 A

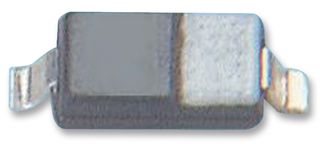

The is a surface mount Schottky Barrier Diode with matte tin annealed over alloy 42 lead frame terminals, UL94V-0 flame-rated case and cathode band terminal connection. Solderable terminals as per MIL-STD-202, method 208 standard. The Schottky diode offers users an excellent performance combination comprising high current operation, extremely low leakage and low forward voltage ensuring suitability for applications requiring efficient operation at higher temperature above 85°C.

.

High current capability

.

Low forward voltage

.

250mW Power dissipation
