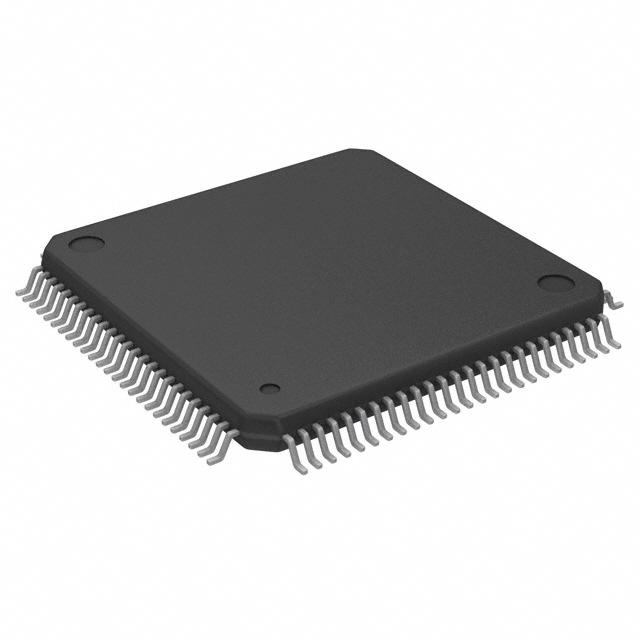

Z84C15 系列 16 MHz 5 V 表面贴装 IPC 智能外设控制器 - VQFP-100
* High speed operation 6, 10 MHz * 16 MHz operation * Low power consumption in four operation modes: 41 mA Typ. Run mode 6 mA Typ. Idle1 mode 60 pA Typ. Idle2 mode 0.5 pA Typ. Stop mode * Wide operational voltage range 5V ± 10%. * TTL/CMOS compatible. * Z84013 features: - Z84C00 Z80 CPU - On-chip two channel SIO Z80 SIO. - On-chip four channel Counter Timer Controller Z80 CTC. - Built-in Clock Generator Controller CGC. * Built-in Watch Dog Timer WDT. * Noise filter to CLK/TRG inputs of the CTC. * 84-pin PLCC package. * Z84015 features: - All Z84013 features, plus on-chip two 8-bit ports Z80 PIO and 100-pin QFP package. * Z84C15 enhancements: * Power-on reset. * Addition of two chip select pins. * 32-bit CRC for Channel A of SIO. * Wait state generator. * Simplified EV mode selection. * Schmitt-trigger inputs to transmit and receive clocks of the SIO. Crystal divide-by-one mode. * 100-pin VQFP.
