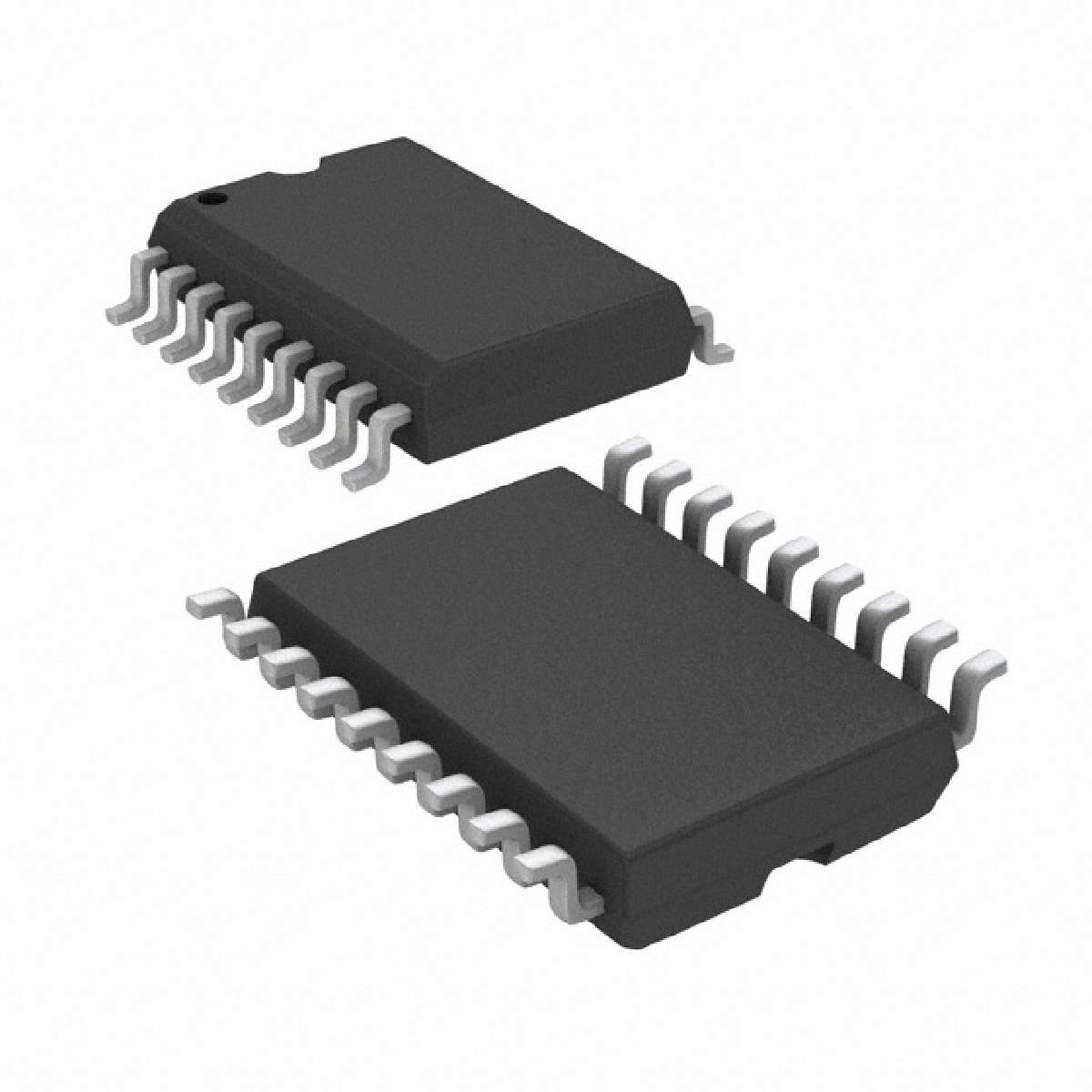

Z86E0812SSC1866

8位微控制器 -MCU Z8 2K OTP 12MHz

GENERAL DESCRIPTION

"s Z86E04/E08 Microcontrollers MCU are One-Time Programmable OTP members of Zilog’s single-chip Z8® MCU family that allow easy software development, debug, prototyping, and small production runs not economically desirable with masked ROM versions.

For applications demanding powerful I/O capabilities, the Z86E04/E08"s dedicated input and output lines are grouped into three ports, and are configurable under software control to provide timing, status signals, or parallel I/O.

Two on-chip counter/timers, with a large number of user selectable modes, offload the system of administering real-time tasks such as counting/timing and I/O data communications.

FEATURES

■ 14 Input/Output Lines

■ Six Vectored, Prioritized Interrupts 3 falling edge, 1 rising edge, 2 timers

■ Two Analog Comparators

■ Program Options:

   – Low Noise

   – ROM Protect

   – Auto Latch

   – Watch-Dog Timer WDT

   – EPROM/Test Mode Disable

■ Two Programmable 8-Bit Counter/Timers, Each with 6-Bit Programmable Prescaler

■ WDT/ Power-On Reset POR

■ On-Chip Oscillator that Accepts XTAL, Ceramic Resonance, LC, RC, or External Clock

■ Clock-Free WDT Reset

■ Low-Power Consumption 50 mw typical

■ Fast Instruction Pointer 1µs @ 12 MHz

■ RAM Bytes 125
