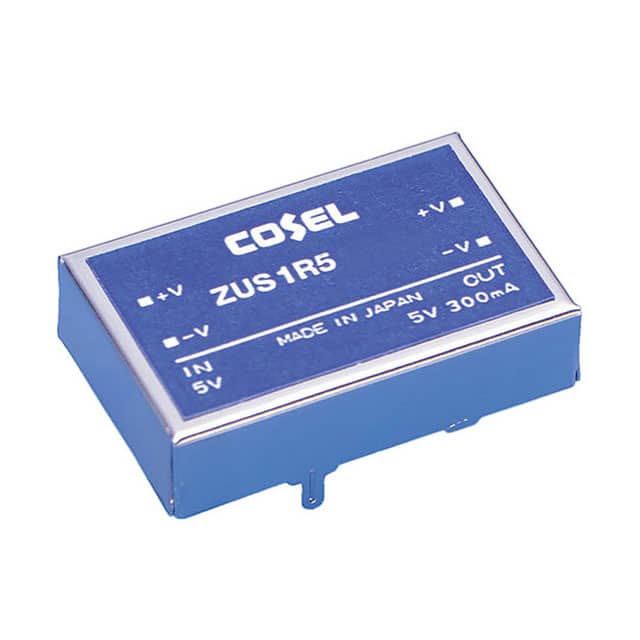

Converter; 5V; 0.3A; 5V; 0.441A Typ.; 27.5mm W x 7mm H x 18mm D; 71 de
Designed for Ultra Thin Profile, High Reliability and Low Cost.
* Thinnest Industry Available Profile: 1.5-10 Watts — 0.28"; 15-25 Watts — 0.33"
* High Quality — Field Failure Rate Less than 0.012%
* Wide Range Input Series: 4.5 to 72 VDC
* Over-Current Protection Circuitry
* Fully Regulated and Fully Isolated Between Input and Output
* Low EMI: 1.5-10 Watts — Brass Die-Cast Housing; 15-25 Watts — Aluminum Die-Cast Housing
* UL, CSA, TÜV Safety Approvals
* Five-Year Warranty
输出接口数 1
输出电压 5 VDC
输出电流 0.3 A
输入电流 441 mA
输出功率 1.50 W
隔离电压 500 V
输入电压Max 9 V
输入电压Min 4.5 V
输出电流Max 300 mA
工作温度Max 71 ℃
工作温度Min -20 ℃
输入电压 4.5V ~ 9V
安装方式 Through Hole
引脚数 4
封装 DIP-4
长度 0.71 in
宽度 1.08 in
高度 0.28 in
封装 DIP-4
工作温度 -20℃ ~ 71℃
产品生命周期 Active
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
