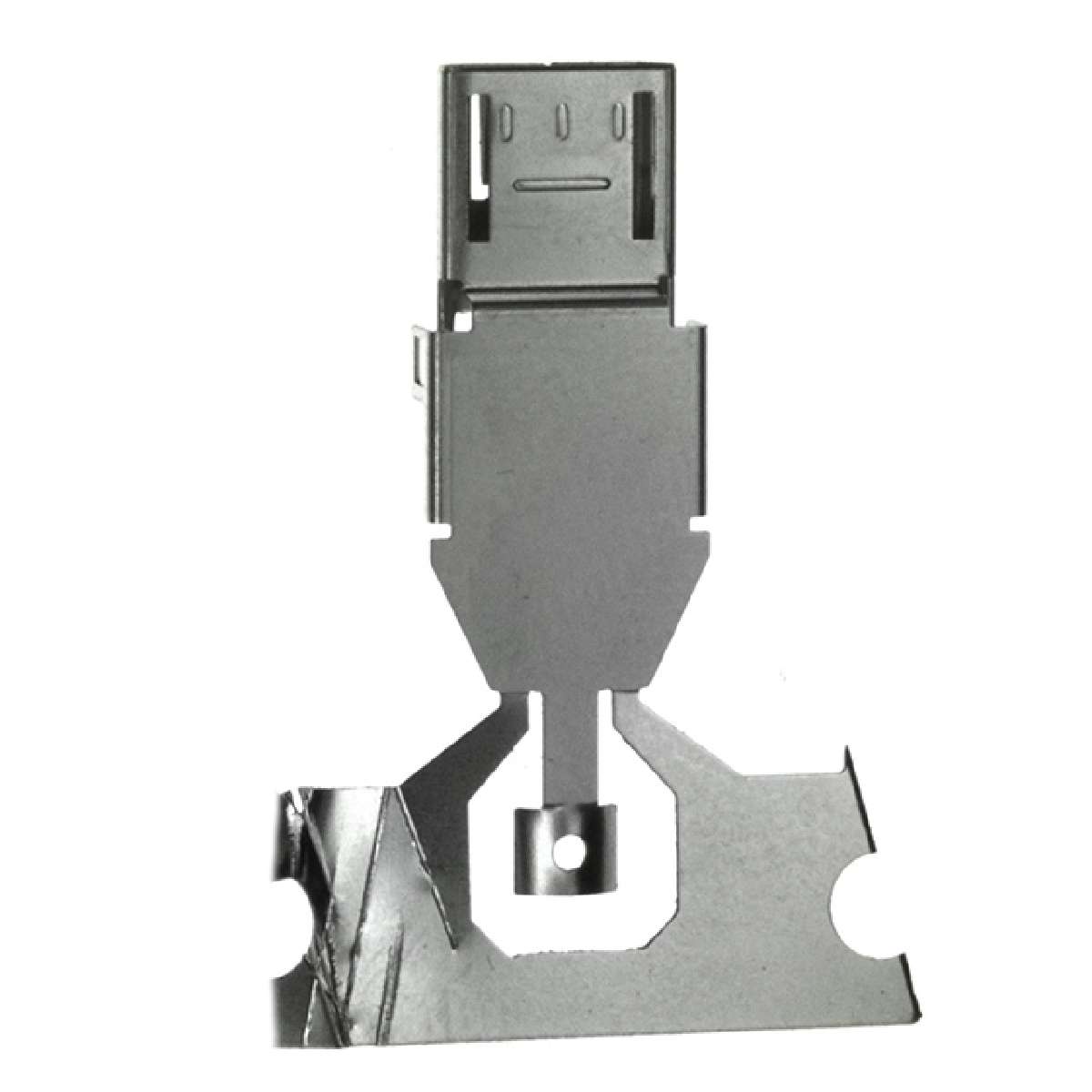

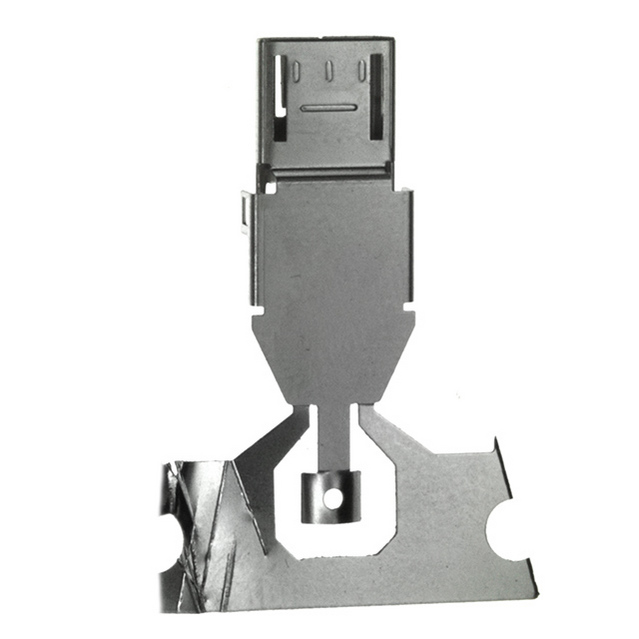

ZX10-B-SLDA

USB 2.0标准的Micro-USB连接器，会议要求 Micro-USB connectors meeting requirements of USB 2.0 Standard

■Overview

Extremely small high reliability connectors complying with physical, electrical and environmental requirements of Micro-USB standard USB 2.0. Receptacles and plugs are available in a wide variety of mounting and termination configurations, permitting their use in various applications.

■Features

1\. Size reduction

Compared with the standard Mini-B connectors, the size of ZX connectors is reduced by approximately 60% while still allowing a high-speed data transfer of 480 Mbps, specified in USB 2.0.

2\. Receptacle styles

Two interface configurations: Micro-B and Micro-AB in standard, mid-mount and reverse mounting styles.

SMT and through-hole shell PC board terminations

3\. Plug styles

Corresponding to the receptacle styles, two interface configurations:

Micro-B and Micro-A, with direct wire or PCB wire soldering.

Several plug styles can be used for data transmission, earphone or charging applications.

4\. High durability

Unique contact and lock configuration assures high durability while maintaining easy insertion / disconnection. Fully mated condition when mated with corresponding HRS connector is confirmed by a

definite tactile sensation

5\. RoHS compliant

All components and materials comply with the requirements of EU directive 20/95/EC

■Applications

Mobile phones, PDA, portable music players, digital cameras, digital camcorders and other applications requiring high reliability Micro-B interface connectors.
