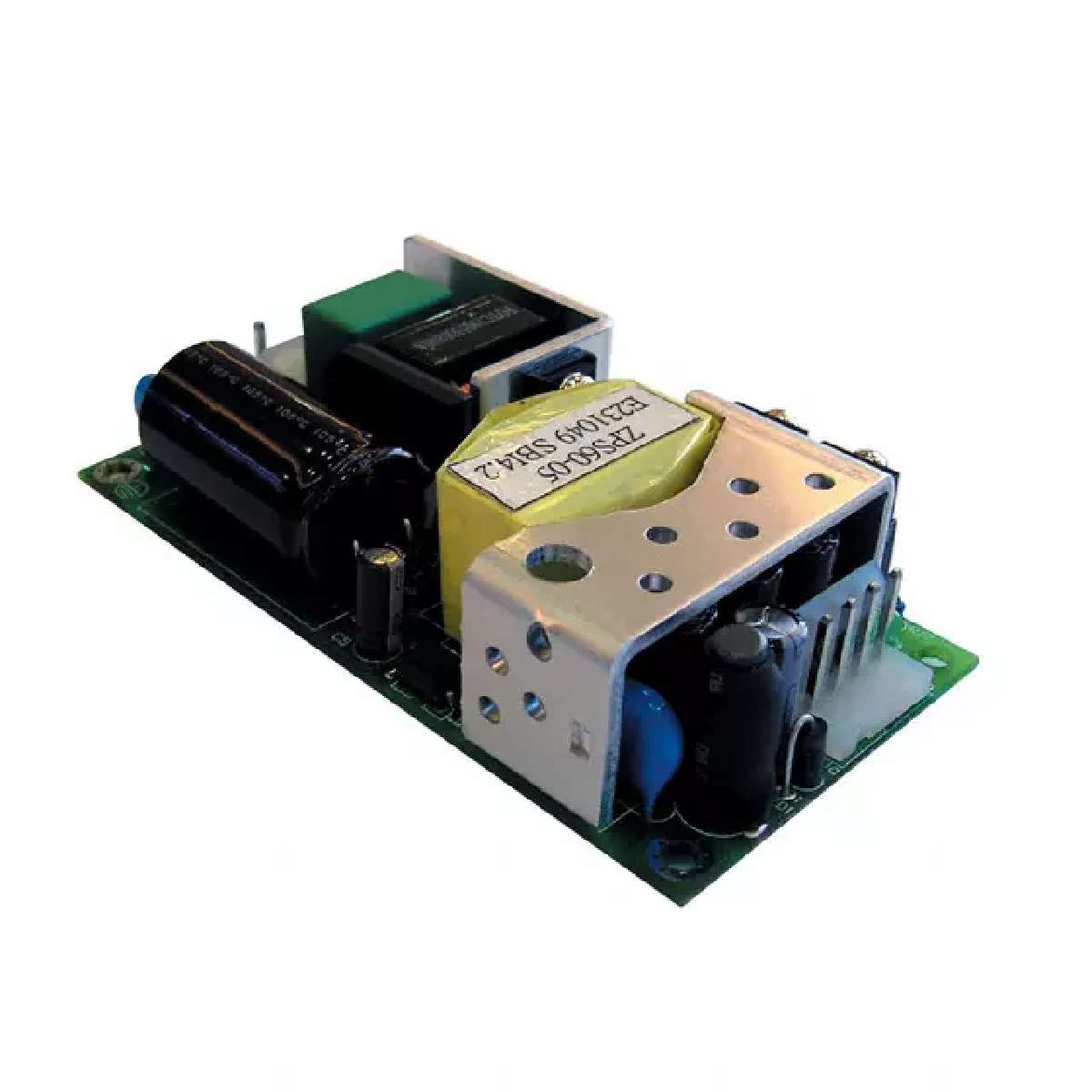

TDK LAMBDA ZPS6024 开关模式稳压电源, 24V
Ensure optimal performance of your electronic device with the use of this AC to DC power supply from -Lambda. It has a voltage of 24 V and maximum output power of 60 W. This part"s single output can handle a current up to 2.5 A. This part has a minimum operating temperature of 0 °C and a maximum of 70 °C.
额定功率 60 W
输出接口数 1
输出电压 24 V
输出电流 2.5 A
输出功率 60 W
隔离电压 3 kV
输入电压DC Max 370 V
输入电压DC Min 120 V
输入电压AC Max 264 v
输入电压AC Min 90 v
输出电流Max 2.5 A
输入电流Min 1.6 A
输出功率Max 60 W
额定功率Max 60 W
工作温度Max 70 ℃
工作温度Min 0 ℃
输入电压AC 90V ~ 264V
输入电压 90VAC ~ 264VAC
安装方式 Chassis
引脚数 4
长度 2 in
宽度 4 in
高度 1.2 in
重量 170 g
工作温度 0℃ ~ 70℃
产品生命周期 Not For New Designs
包装方式 Bulk
制造应用 ITE(商业)
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ZPS6024 TDK 东电化 | 当前型号 | 当前型号 |
ZPSA6024 东电化 | 类似代替 | ZPS6024和ZPSA6024的区别 |
