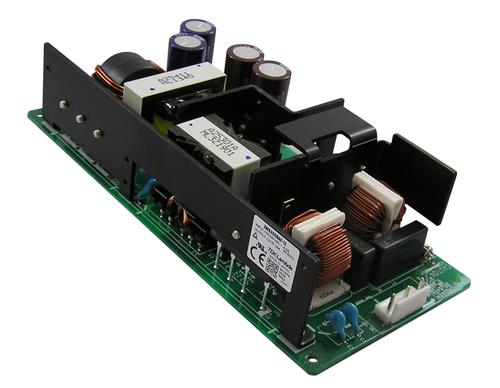

TDK LAMBDA ZWS300BAF15 交流/直流转换器, 300W, 15V, 20A
开放框架 AC DC 转换器 输出 15V - - - 20A 85 ~ 265 VAC 输入
得捷:
AC/DC CONVERTER 15V 300W
e络盟:
TDK LAMBDA ZWS300BAF15 交流/直流转换器, 300W, 15V, 20A
艾睿:
This ZWS300BAF15 AC to DC power supply from TDK-Lambda safely converts alternating currents into direct currents that your electronic devices can make use of. It has a voltage of 15 V and maximum output power of 300 W. This part&s;s single output can handle a current up to 20 A. This part has a temperature range of -10 °C to 70 °C.
Allied Electronics:
Power Supply; AC-DC; 15V@20A; 85-265V In; Open Frame; Panel Mount; PFC; 300W; ZWS Series
Chip1Stop:
AC/DC Power Supply Single-OUT 15V 20A 300W
Verical:
AC/DC Power Supply Single-OUT 15V 20A 300W
输出接口数 1
输出电压 15 V
输出电流 20 A
输出功率 300 W
隔离电压 3 kV
输入电压DC Max 370 V
输入电压DC Min 120 V
输入电压AC Max 265 v
输入电压AC Min 85 v
输出电流Max 20 A
输入电流Min 3.7 A
输出功率Max 300 W
工作温度Max 70 ℃
工作温度Min -10 ℃
输入电压 85VAC ~ 265VAC
安装方式 Chassis
长度 180 mm
宽度 84 mm
高度 42 mm
工作温度 -10℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
