AC-DC Power Supply Quad-OUT 3.3V/5V/12V/-12V 6A/5A/6A/0.2A 90W
开放框架 AC DC 转换器 输出 3.3V 5V 12V -12V 6A,5A,6A,200mA 85 ~ 265 VAC 输入
得捷:
AC/DC CNVRTR 3.3V 5V +/-12V 90W
艾睿:

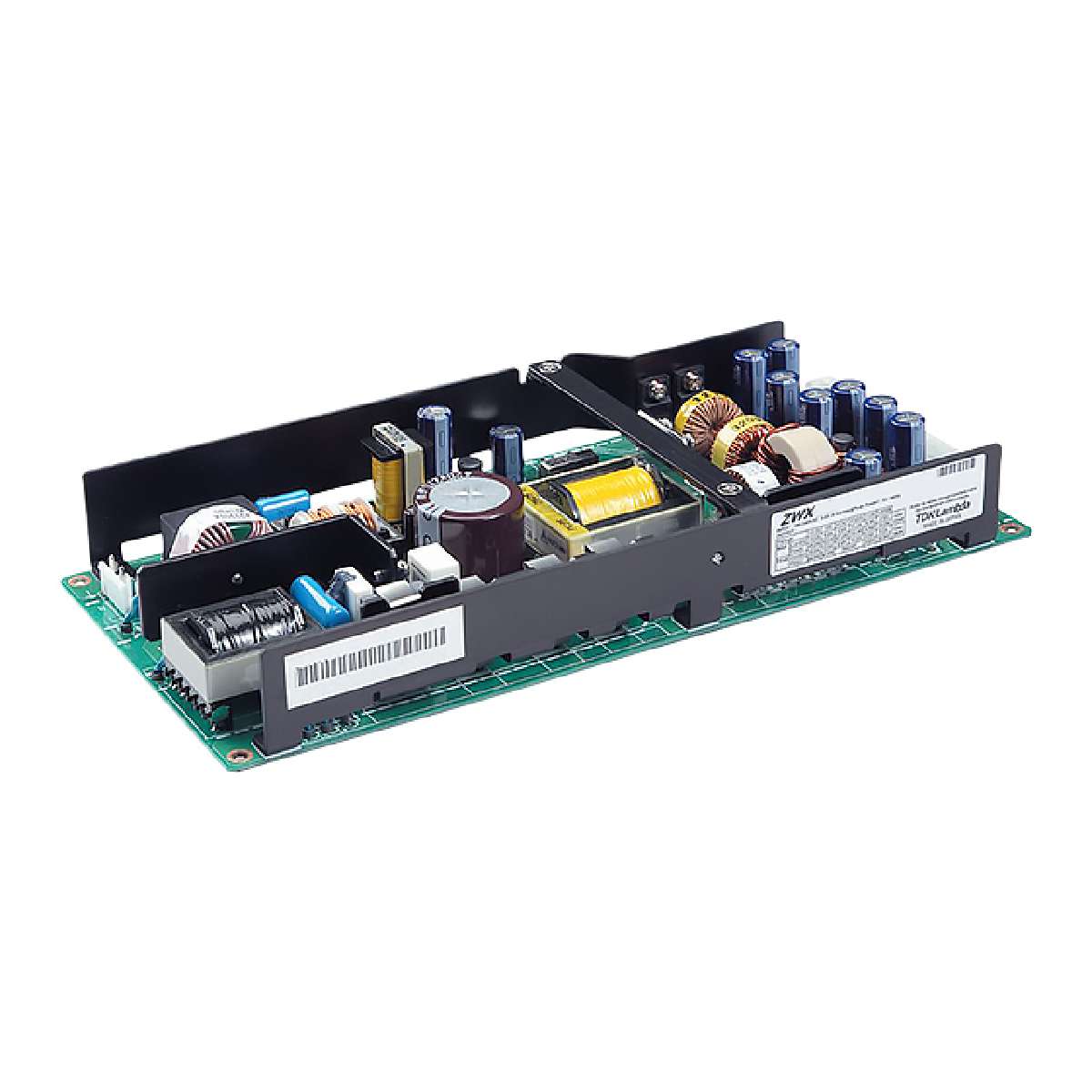

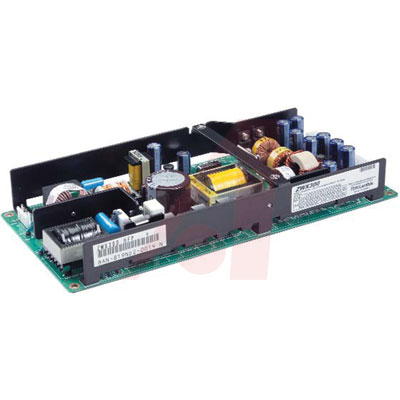

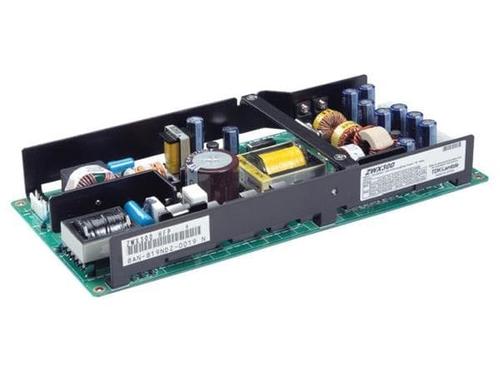

Safely convert alternating currents into direct currents that your electronic devices can make use of with this ZWX180 AC to DC power supply from TDK-Lambda. It has a voltage of 3.3|5|12|-12 V and maximum output power of 90 W. This part&s;s 4 outputs can handle a current up to 6|5|6|0.2 A. This part has a temperature range of -10 °C to 70 °C.
Allied Electronics:
Power Supply, AC-DC ATX, 85-265VAC Input, 115-230VAC Output, 5 Output, 180 Watts
额定功率 153 W
输出接口数 4
输出电压 3.30 V
输出电流 8.40 A
输出功率 90 W
隔离电压 3 kV
输入电压AC Max 265 v
输入电压AC Min 85 v
输入电流Min 1.9 A
输出功率Max 90 W
工作温度Max 70 ℃
工作温度Min -10 ℃
输入电压 85VAC ~ 265VAC
安装方式 Chassis
长度 8.27 in
宽度 3.7 in
高度 1.42 in
工作温度 -10℃ ~ 70℃
产品生命周期 Obsolete
包装方式 Bulk
制造应用 ITE(商业)
RoHS标准 RoHS Compliant
含铅标准 Lead Free
