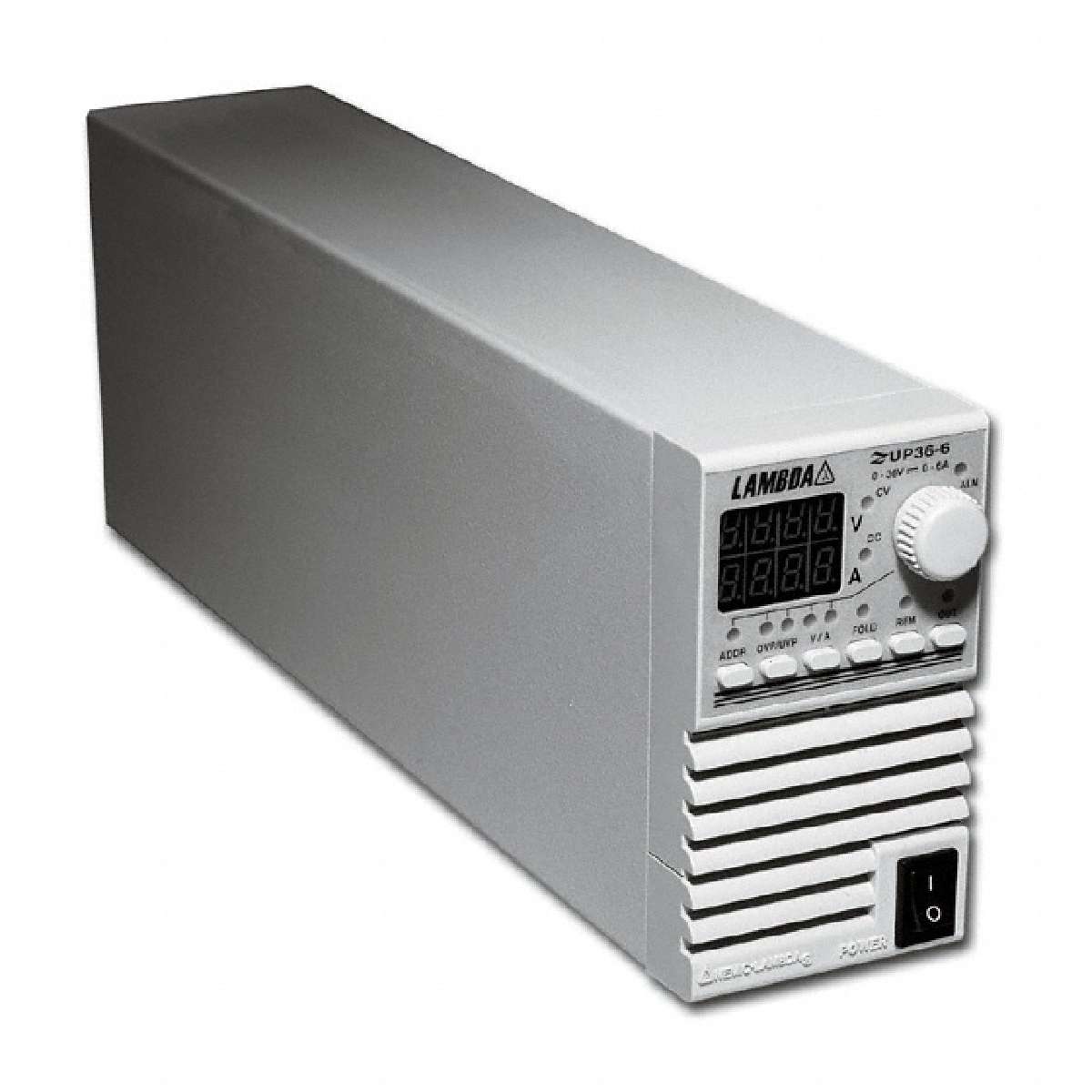

ZUP20-10/U

Power Supply, Programmable; 200W Max.; 0 to 10A; 5mV @ 5Hz to 1MHz

3U Rack, Kit

The ZUP series are wide range output switching power supplies with laboratory performance. The ZUP series is power factor corrected and operates from worldwide AC voltage range continuously. Output voltage and current are continuously displayed and LED indicators show the complete operating status of the power supply. The front panel controls allow the user to set the output parameters, the protection levels over-voltage / under-voltageand arm the fold back protection to disable the output if the unit switches from Constant-Voltage mode to Constant-Current mode.

**Programming Voltage Resolution:** Better than 0.028% of rated voltage, **Programming Current Resolution:** Better than 0.03% of rated current, **Display Voltage:** 3 digits 6, 20, 36, 60 and 80 V Models, 3.5 digits 10 and 120 V Models, **Display Current:** 3 digits 3.5 digits 132 A Model.

* Three Year Warranty

* Constant Voltage/Constant Current

* Digital Meters

* Last Setting Memory

* Cable Accessories Available

* Over Temperature Protected

* Output Good

* Series or Parallel Operation

* Built-in RS232/485 Interface Optional GPIB

* Bench or Rack Mount

* Power Factor Corrected

* Remote Sense

* Remote On/Off

* Wide Range AC Input 85-265VAC

* 0-50°C Operating Temperature

* UL3111-1, EN61010-1, CE Mark
