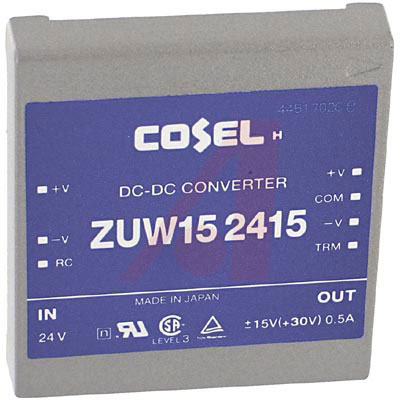

Module DC-DC 24Vin 2Out 15V/-15V 0.5A 15W 7Pin
Designed for Ultra Thin Profile, High Reliability and Low Cost.
* Thinnest Industry Available Profile: 1.5-10 Watts — 0.28"; 15-25 Watts — 0.33"
* High Quality — Field Failure Rate Less than 0.012%
* Wide Range Input Series: 4.5 to 72 VDC
* Over-Current Protection Circuitry
* Fully Regulated and Fully Isolated Between Input and Output
* Low EMI: 1.5-10 Watts — Brass Die-Cast Housing; 15-25 Watts — Aluminum Die-Cast Housing
* UL, CSA, TÜV Safety Approvals
* Five-Year Warranty
输出接口数 2
输出电压 ±15 V
输出电流 0.5 A
输入电流 0.75 A
输出功率 15 W
输入电压Max 36 V
输入电压Min 18 V
工作温度Max 71 ℃
工作温度Min -20 ℃
输入电压 18V ~ 36V
安装方式 Through Hole
引脚数 7
封装 45 mm W x 8.5 mm H x 50 mm D
长度 1.97 in
宽度 1.77 in
高度 0.33 in
封装 45 mm W x 8.5 mm H x 50 mm D
工作温度 -20℃ ~ 71℃
产品生命周期 End of Life
RoHS标准 RoHS Compliant
含铅标准 Lead Free
