ZPSA60-30

AC-DC Power Supply Single-OUT 30V 2A 60W 7Pin

The new single-output ZPSA60 series accepts a wide input voltage range, has a low profile and industry standard footprint 2 x 4 x 1.07", making it an ideal choice for applications such as LED signs and lighting, point-of-sale equipment, computer peripherals, datacom, telecom, video/audio routers and test & measurement equipment.

These 60-watt supplies are available with the most popular output voltages from 3.3V to 48VDC. The outputs are floating so they can be used as either a positive or negative polarity. Typical efficiencies are up to 88%. These models are rated for operation in a convection cooled environment from 0°C up to 70°C with derating. A green LED is provided as an indicator that the power supply is on. Other standard features include overvoltage and short-circuit protection.

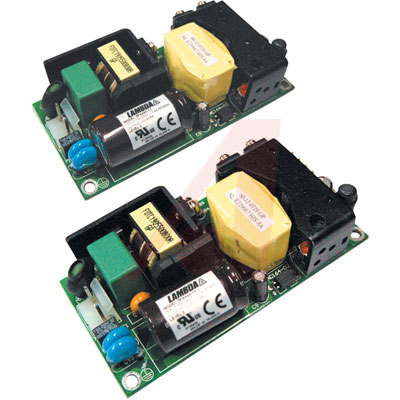

To maximize design-in flexibility, Lambda is offering these supplies as either an open-board configuration with Molex input/output connectors.

Accepting a wide input voltage range of 90-264VAC 47-440Hz or 120-370VDC, the ZPSA60 series is ready for use globally with no further configuration or input selection. Its industry standard footprint makes it an ideal choice as a drop-in replacement for existing supplies, while its low profile means that it can be installed in the most compact of applications. The ZPSA60 has global safety agency approvals per UL/CSA/EN60950-1; meets conducted and radiated EMC requirements of EN55022-B and FCC Class B without additional filtering or components and meets EN61000-4 immunity specs for greater reliability. All supplies carry the CE Mark and are RoHS compliant.

* Single Output

* Wide Range AC Input

* Low 1.07" Profile so less system space is needed

* Up to 88% Efficiency for reduced system heating

* Industry Standard Footprint

* Global Safety Agency Compliance
