SMC 的 ZFC 系列为空气吸入过滤器，可防止由于真空吸盘的灰尘导致的麻烦。 轻便紧凑且易于更换，无需工具。 体积小，重量轻，直插式设计 整体式单触插入配件 以 B 结尾的制造商部件号与表面安装支架一起完整提供 过滤器、调节器和量表
**ZFB Series Vacuum Filter with Built-In One-Touch Fittings
**
* Bowl Type Vacuum Filter**
**
* Inlet Port Rotates 180 Degrees**
**
* Integrated Mounting Holes**
**
* Built-In One-Touch Fittings**
**
* Replaceable Element**

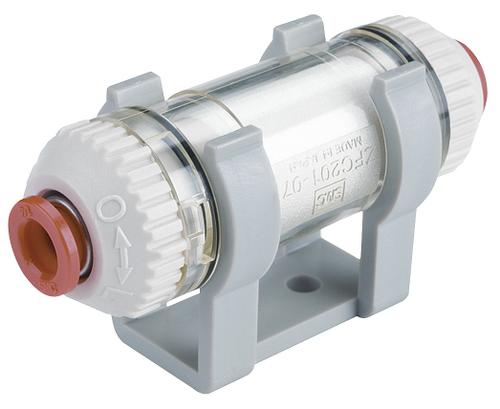

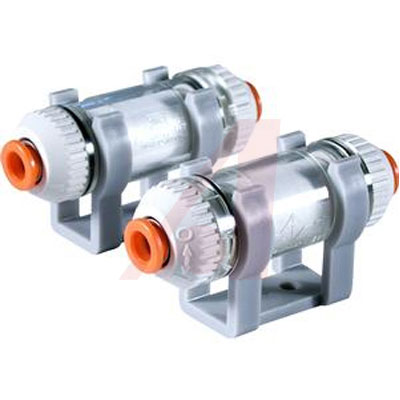

ZFC Series Compact Inline Vacuum Filter with Built-In One-Touch Fittings
**
* Inline Type Vacuum Filter**
**
* Built-In One-Touch Fittings**
**
* Replaceable Element**
**
* Mounting Bracket Included
安装方式 Through Hole
工作温度 0℃ ~ 60℃
Brand/Series ZFC100 Series
Diameter, Tube 3 mm
Flow Rate 10 L⁄min. ANR Min.
For Use With Vacuum Equipment
Material Nylon, Polyvinyl Fluoride, Rubber
Material, Bowl Polybutylene Terephthalate
Material, Tube Nylon, Soft Nylon, Polyurethane, Soft Polyurethane
Pressure, Operating -100 to 0 kPa
Size, Element 16 mm D1 x 12 mm D2 x 25 mm L
Size, Port 5/32 in. in.
Temperature, Ambient 0 to 60 °C °C
Temperature, Operating 0 to 60 °C
Type Filter, Air Suction
RoHS标准 RoHS Compliant
