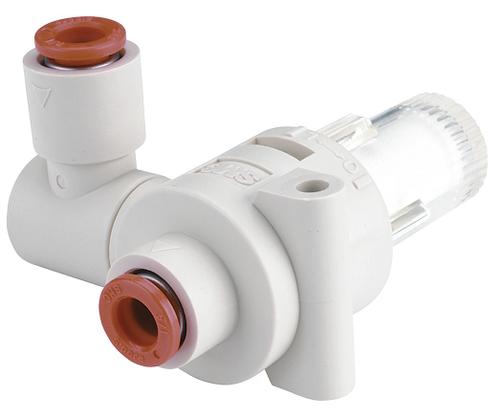

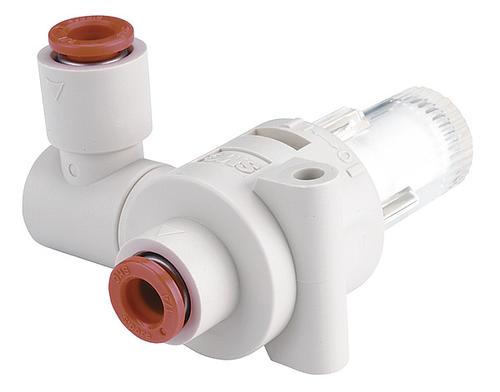

SMC Corporation VACUUM, FILTER, HIGH FLOW, ANGLE TYPE, 1/4IN. PORT
**ZFB Series Vacuum Filter with Built-In One-Touch Fittings
**
* Bowl Type Vacuum Filter**
**
* Inlet Port Rotates 180 Degrees**
**
* Integrated Mounting Holes**
**
* Built-In One-Touch Fittings**
**
* Replaceable Element**
ZFC Series Compact Inline Vacuum Filter with Built-In One-Touch Fittings
**
* Inline Type Vacuum Filter**
**
* Built-In One-Touch Fittings**
**
* Replaceable Element**
**
* Mounting Bracket Included
材质 Polyester
工作温度 0℃ ~ 60℃
Brand/Series ZFB200 Series
Color, Button Red
Diameter, Tube 1⁄4"
Flow Rate 30 l/min
Material Polyester
Material, Bowl Nylon
Pressure, Operating -100 to 0 kPA kPA
Proof Pressure 0.5 MPa MPa
Size, Port 1/4 in. in.
Temperature, Ambient 0 to 60 °C °C
Temperature, Operating 0 to +60 °C
Type Filter, Vacuum
RoHS标准 RoHS Compliant
