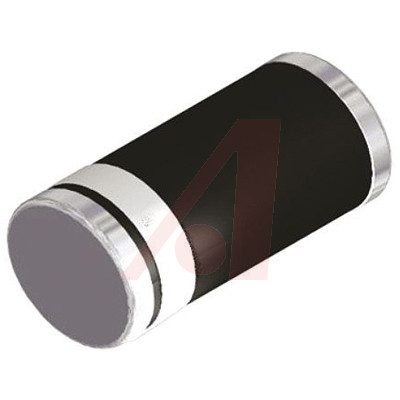

ZM4750A 系列 1 W 30 V 5 % 容差 齐纳二极管 - MELF 玻璃外壳
**Features:**
* Silicon Planar Power Zener Diodes
* For use in Stabilizing and Clipping Circuits with High Power Rating
* Standard Zener Voltage Tolerance Is ±5%
* Diodes Are Also Available in the DO-41 Case with Type Designation 1N4728 A... 1N4764A
* Lead Pb-Free Component
* Component in Accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
得捷:
DIODE ZENER 30V 1W DO213AB
艾睿:
Diode Zener Single 30V 5% 1W Automotive 2-Pin MELF T/R
富昌:
ZM4750A 系列 1 W 30 V 5 % 容差 齐纳二极管 - MELF 玻璃外壳
Chip1Stop:
Diode Zener Single 30V 5% 1W Automotive 2-Pin MELF T/R
Verical:
Diode Zener Single 30V 5% 1W Automotive 2-Pin MELF T/R
Newark:
# VISHAY ZM4751A-GS08 Zener Single Diode, 5 %
儒卓力:
**Z-DIODE 1,0W 30V 5% MELF **
容差 ±5 %
击穿电压 30.0 V
耗散功率 1000 mW
热阻 170K/W RθJA
测试电流 8.5 mA
稳压值 30 V
额定功率Max 1 W
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温Max 150 ℃
耗散功率Max 1000 mW
安装方式 Surface Mount
引脚数 2
封装 DO-213AB
长度 5.2 mm
宽度 2.6 mm
高度 2.6 mm
封装 DO-213AB
工作温度 175 ℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ZM4751A-GS08 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
ZM4751A-GS18 威世 | 类似代替 | ZM4751A-GS08和ZM4751A-GS18的区别 |
DL4751A-TP 美微科 | 功能相似 | ZM4751A-GS08和DL4751A-TP的区别 |
SML4751A-E3/61 威世 | 功能相似 | ZM4751A-GS08和SML4751A-E3/61的区别 |
