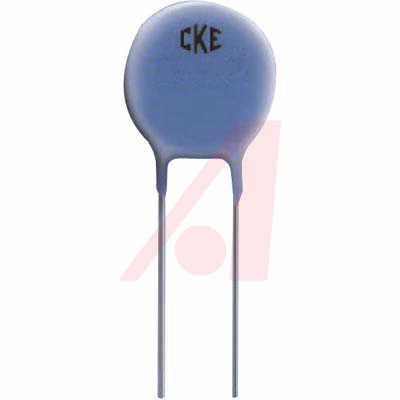

Z550LA80A

Varistor; MOV; 550VAC; 700VDC; 6500A; 350pF

Radial leaded MOVs having the Underwriters Laboratory Recognized Component Mark, conform to UL 1414, UL1449 second addition and CSA class 222101. CKE"s UL recognized parts are listed on file #E905101 M.

.

*Maximum Power Dissipation**: 5 mm — 0.1 watt; 7 mm — 0.25 watt; 10 mm — 0.4 watt; 14 mm — 0.6 watt, 20 mm — 1 watt. Typical response time is less than 15 nanoseconds.

Allied Electronics:
Varistor; MOV; 550 VAC; 700 VDC; 6500 A; 350 pF
