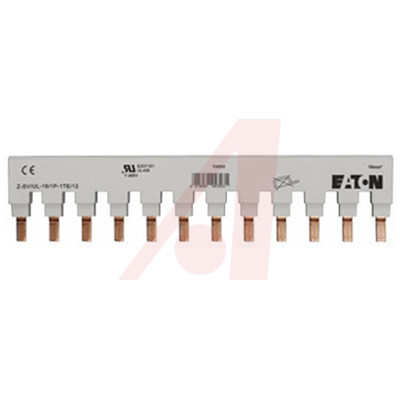

z-Sv/Ul-16/1p-1te/12, Faz-Na Ul 489 80A 1p Mcb Bus Bar For 12 Breakers
Optimum product quality, tested reliability and safety stand for best protection of personnel, installations and plant. Eaton’s FAZ-NA DIN rail mountable circuit breaker is designed for use in branch service applications. The FAZ-NA Series is available with B, C and D characteristics in accordance with UL 489, CSA C22.2 No.5, UL 1077, CSA C22.2 No.235 and IEC 60947-2. These devices are CE marked.
**Broad Range of Tripping Curves:**
* B Characteristic for Standard Circuit Protection
* C Characteristic for Higher Inrush Currents
* D Characteristic for Inductive and Capacitive Loads
**Features**
* Rated Currents Up to 40A
* DIN Rail Mount
* Suitable for Branch Circuit Device Protection
* Current Limiting Design
* Fulfill UL489, CSA C22.2 No. 5 and IEC 60947-2
* Optional Ring Tongue Connection
* Module Width of Only 17.7 mm Per Pole
* Reliable and Safe Operation
* Captive Screws Cannot Be Lost
* Snap-On Accessories
* Contact Position Indicator
* Finger Proof
* Trip-Free Mechanism
**Applications:**
* Convenience Receptacle Circuits
* Motor Control Circuits
* Load Circuits Leaving the Equipment
* HACR Internal/External Equipment
* PLC I/O Points
* Computers
* Power Supplies
* Control Instrumentation
* Relays
* UPS
* Power Conditioners
