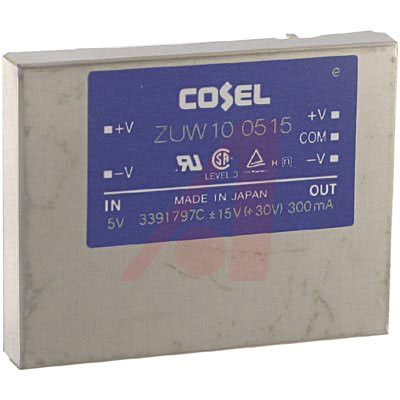

ZUW Series 5Vin 2Out 15V/-15V 0.3A 9W 5Pin DC-DC Converters
Designed for Ultra Thin Profile, High Reliability and Low Cost.
* Thinnest Industry Available Profile: 1.5-10 Watts — 0.28"; 15-25 Watts — 0.33"
* High Quality — Field Failure Rate Less than 0.012%
* Wide Range Input Series: 4.5 to 72 VDC
* Over-Current Protection Circuitry
* Fully Regulated and Fully Isolated Between Input and Output
* Low EMI: 1.5-10 Watts — Brass Die-Cast Housing; 15-25 Watts — Aluminum Die-Cast Housing
* UL, CSA, TÜV Safety Approvals
* Five-Year Warranty
输出接口数 2
输出电压 ±15 V
输出电流 0.3 A
输入电流 2.40 A
输出功率 9 W
输入电压Max 9 V
输入电压Min 4.5 V
工作温度Max 71 ℃
工作温度Min -20 ℃
输入电压 4.5VDC ~ 9VDC
安装方式 Through Hole
引脚数 5
封装 45 mm W x 7 mm H x 35 mm D
长度 1.38 in
宽度 1.77 in
高度 0.28 in
封装 45 mm W x 7 mm H x 35 mm D
工作温度 -20℃ ~ 71℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
