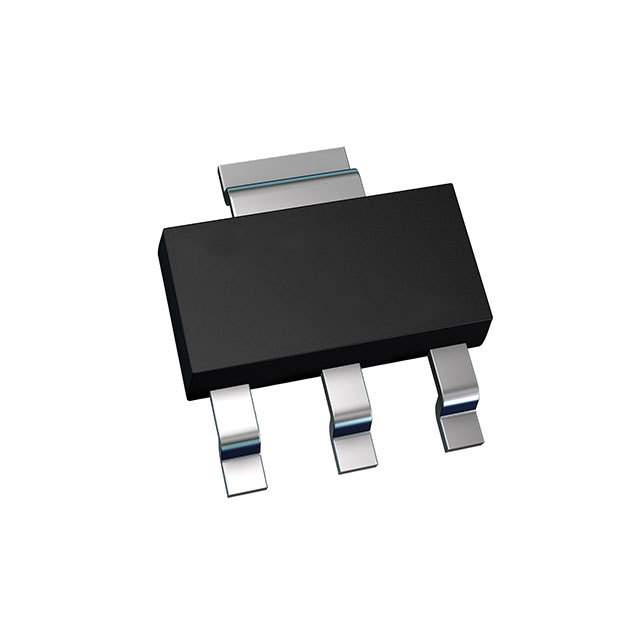

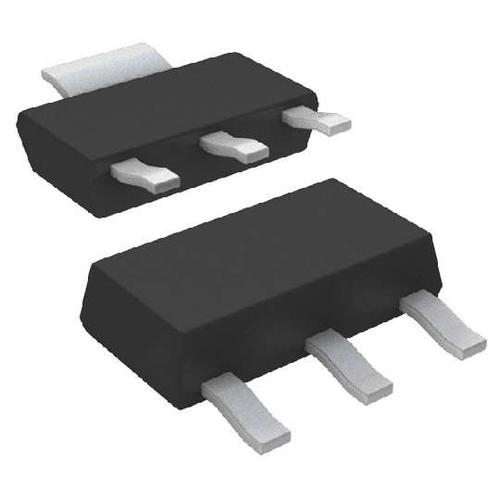

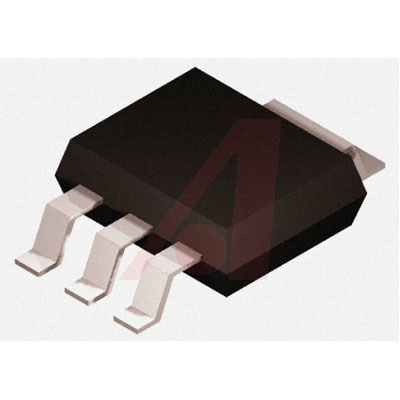

ZLDO1117 系列 2.7 至 18 V 输入 1 A LDO 正电压 稳压器 - SOT-223
Description
ZLDO1117 is a low dropout positive adjustable or fixed-mode regulator with 1A output current capability.
The ZLDO1117 has a 2% tolerance across the industrial temperature range and is guaranteed to have lower than 1.2V dropout at full load current making it ideal to provide well-regulated outputs of 1.2V to 5.0V with input supply voltages up to 18V. The ZLDO1117 is ideally suited to provide well-regulated supplies for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply across the whole industrial temperature range.
Features
• 1.2V Maximum Dropout at Full Load Current
• 2% Tolerance Over Temperature, Line and Load Variations
• Fast Transient Response
• Output Current Limiting
• Built-in Thermal Shutdown
• Good Noise Rejection
• Suitable for use with MLCC Capacitors
• Qualified to AEC-Q100 Grade 2 see ‘Ordering Information’
• PPAP capable Note 4
• -40 to +125°C Junction Temperature Range
• Available in TO252 and SOT223 with “Green” Molding CompoundNo Br, Sb
Lead-Free Finish; RoHS Compliant Notes 1 & 2
Halogen and Antimony Free. “Green” Device Note 3
输出接口数 1
输出电压 1.2 V
输出电流 1 A
耗散功率 15 W
静态电流 10 mA
跌落电压 1.11V @1A
输入电压Max 18 V
输入电压Min 2.7 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 15000 mW
精度 ±2 %
输入电压 2.7V ~ 18V
安装方式 Surface Mount
引脚数 4
封装 TO-261-4
封装 TO-261-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
