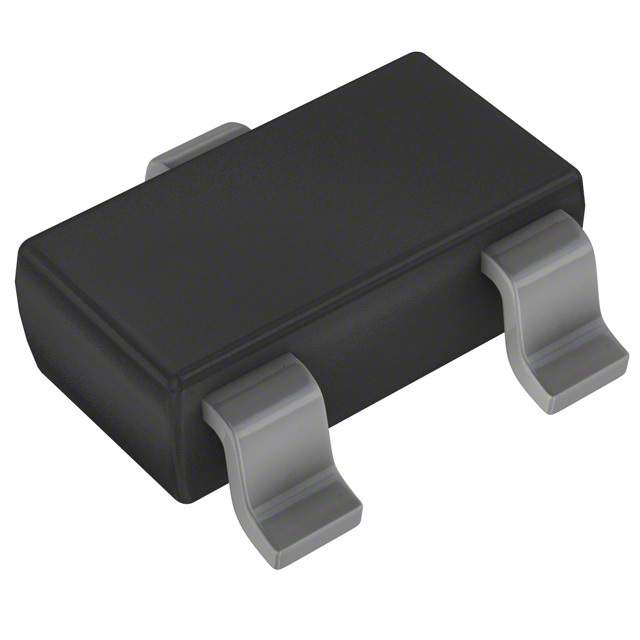

Trans GP BJT NPN 12V 6A 1810mW Automotive 3Pin SOT-23 T/R
Bipolar BJT Transistor NPN 12V 6A 260MHz 1.25W Surface Mount SOT-23-3
得捷:
TRANS NPN 12V 6A SOT23-3
立创商城:
NPN 12V 6A
艾睿:
The three terminals of this NPN ZXTN25012EFHTA GP BJT from Diodes Zetex give it the ability to be used as either an electronic switch or amplifier. This bipolar junction transistor&s;s maximum emitter base voltage is 7 V. Its maximum power dissipation is 1810 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has a maximum collector emitter voltage of 12 V and a maximum emitter base voltage of 7 V. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C.
Allied Electronics:
Trans GP BJT NPN 12V 6A 3Pin SOT23
安富利:
Trans GP BJT NPN 12V 6A 3-Pin SOT-23 T/R
富昌:
ZXTN250 系列 NPN 1.25 W 12 V 6 A 表面贴装 高增益 晶体管 - SOT-23
Chip1Stop:
Trans GP BJT NPN 12V 6A 3-Pin SOT-23 T/R
Verical:
Trans GP BJT NPN 12V 6A Automotive 3-Pin SOT-23 T/R
儒卓力:
**NPN TRANSISTOR 12V 6A SOT23 **
Win Source:
TRANS NPN 12V 6A SOT23-3
DeviceMart:
TRANS NPN 12V 6A MED PWR SOT23-3
频率 260 MHz
额定功率 1.25 W
极性 NPN
耗散功率 1.81 W
击穿电压集电极-发射极 12 V
集电极最大允许电流 6A
最小电流放大倍数hFE 500 @10mA, 2V
额定功率Max 1.25 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 1810 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
封装 SOT-23-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
