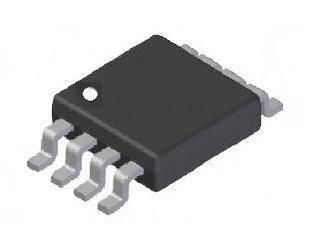

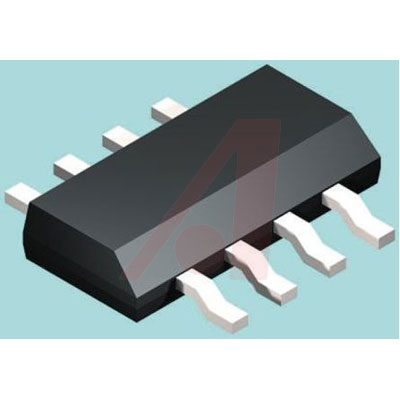

ZLDO330 系列 300 mA 3.3 V 表面贴装 超低压差 稳压器 - SM-8
Keep the energy stable for every system by using this LDO linear regulator by Zetex. This device has a maximum power dissipation of 2000 mW. It has an overall accuracy of ±2.5 %. Its typical dropout voltage at current is 0.006@10mA|0.03@100mA|0.1@300mA V. This voltage regulation device"s single output can produce a current up to 0.3 A. With a small input voltage of -0.3 V and a max of 20 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 78mV and line regulation of 52mV. Its maximum power dissipation is 2000 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. The maximum dropout voltage is 0.01@10mA|0.075@100mA|0.2@300mA V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 1
输入电压DC 20.0V max
输出电压 3.3 V
输出电流 300 mA
耗散功率 2 W
跌落电压 0.1V @300mA
输入电压Max 20 V
输出电压Min 3.3 V
输出电流Max 0.3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 2000 mW
精度 ±2.5 %
输入电压 20 V
安装方式 Surface Mount
引脚数 8
封装 SOT-223-8
封装 SOT-223-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
