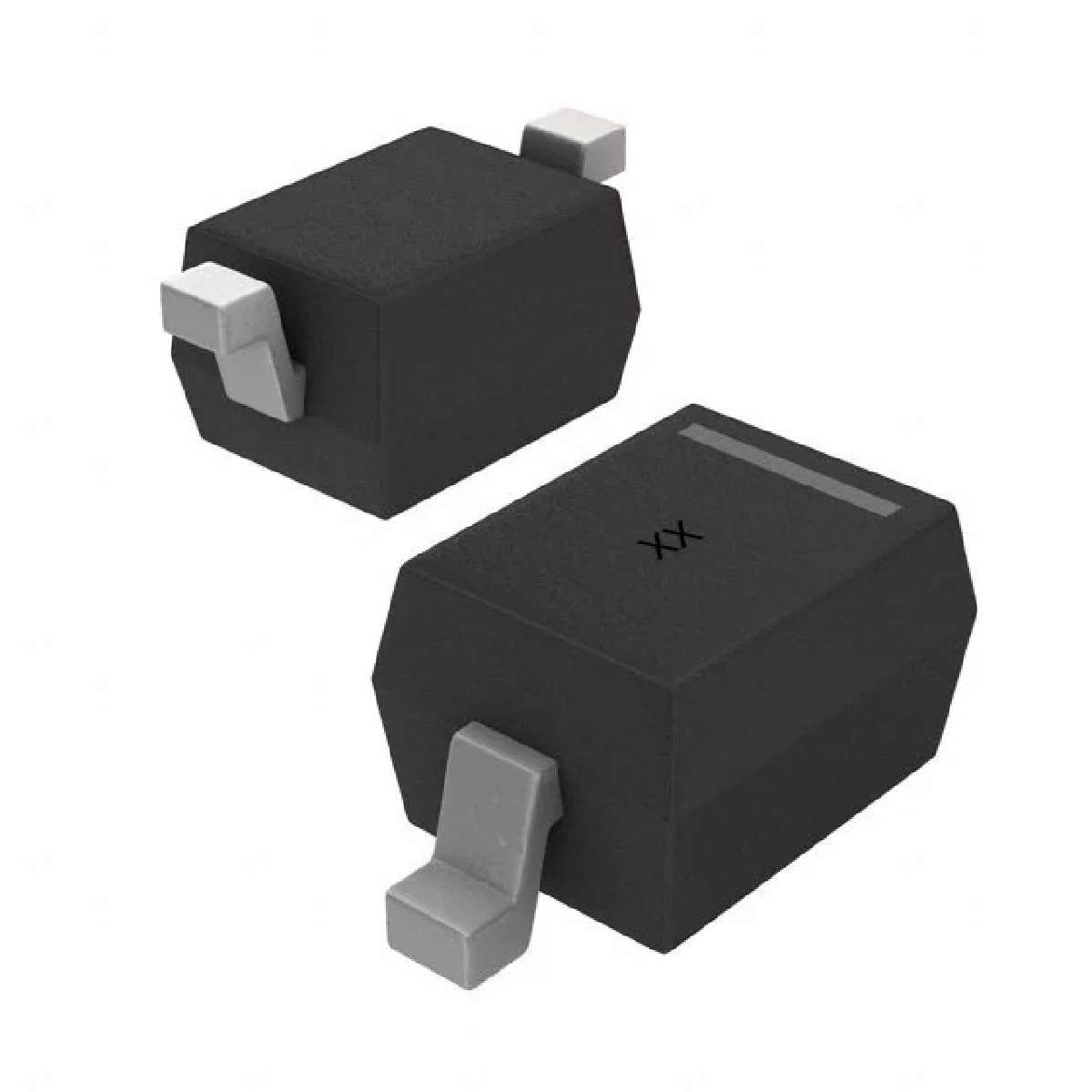

Diode Schottky 40V 0.4A 2Pin SOD-323 T/R
肖特基 400mA（DC） 表面贴装型 SOD-323
得捷:
DIODE SCHOTTKY 40V 400MA SOD323
贸泽:
Schottky Diodes & Rectifiers VR=40V IF=400mA IR=40uA
艾睿:
Switch from an AC voltage to a DC voltage using a Schottky diode ZHCS400TC rectifier from Diodes Zetex. Its maximum power dissipation is 250 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This rectifier has an operating temperature range of -55 °C to 150 °C. Its peak non-repetitive surge current is 6.75 A, while its maximum continuous forward current is 0.4 A. It is made in a single configuration.
安富利:
Diode Schottky 40V 0.4A 2-Pin SOD-323 T/R
Verical:
Diode Schottky 40V 0.4A Automotive 2-Pin SOD-323 T/R
额定电压DC 40.0 V
额定电流 400 mA
电容 20.0 pF
额定功率 357 mW
输出电流 ≤400 mA
正向电压 1.05 V
极性 Standard
正向电流 1 A
最大正向浪涌电流（Ifsm） 6.75 A
正向电流Max 0.4 A
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 250 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-323
长度 1.8 mm
宽度 1.45 mm
高度 0.8 mm
封装 SOD-323
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ZHCS400TC Diodes 美台 | 当前型号 | 当前型号 |
ZHCS400 美台 | 完全替代 | ZHCS400TC和ZHCS400的区别 |
ZHCS400TA 美台 | 类似代替 | ZHCS400TC和ZHCS400TA的区别 |
