正 Vin=100V Vout=5V 50mA 45dB@100Hz
Control the voltage level of your circuit with this standard linear regulator from Zetex. This device has a maximum power dissipation of 2300 mW. This voltage regulation device"s single output can produce a current up to 0.015 A. It only needs a voltage of at least 10 V while not exceeding 100 V to effectively power your circuit. With an adjustable output that has a voltage of 4.5 to 5.5 V, this is power management at its best. By operating at a line regulation of 300mV you can provide a constant voltage at your output. Its maximum power dissipation is 2300 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
输出接口数 1
输出电压 5 V
输出电流 50 mA
耗散功率 2.3 W
静态电流 0.55 mA
输入电压Max 100 V
输入电压Min 10 V
输出电流Max 0.05 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 2300 mW
输入电压 10V ~ 100V
安装方式 Surface Mount
引脚数 3

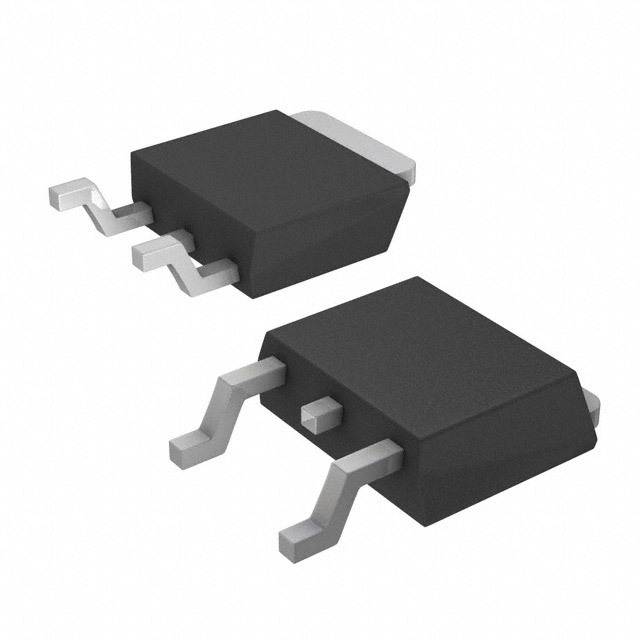

封装 TO-252-3
封装 TO-252-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
