双极晶体管 - 双极结型晶体管BJT NPN 60V 7A
Design filters, receivers, transmitters, op-amps, power supplies, and control circuits with this versatile NPN GP BJT from Zetex. This bipolar junction transistor"s maximum emitter base voltage is 7 V. Its maximum power dissipation is 5300 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a maximum collector emitter voltage of 60 V and a maximum emitter base voltage of 7 V. This bipolar junction transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C.
极性 NPN
耗散功率 5300 mW
击穿电压集电极-发射极 60 V
集电极最大允许电流 7A
最小电流放大倍数hFE 200 @100mA, 2V
最大电流放大倍数hFE 500 @100mA, 2V
额定功率Max 3 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 5300 mW
安装方式 Surface Mount
引脚数 4

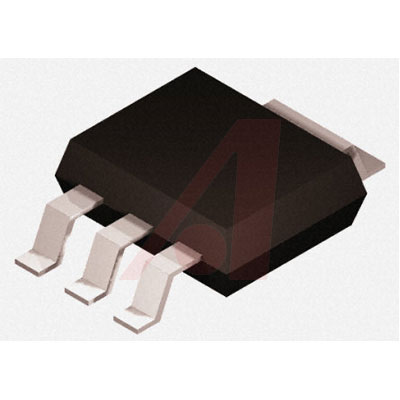

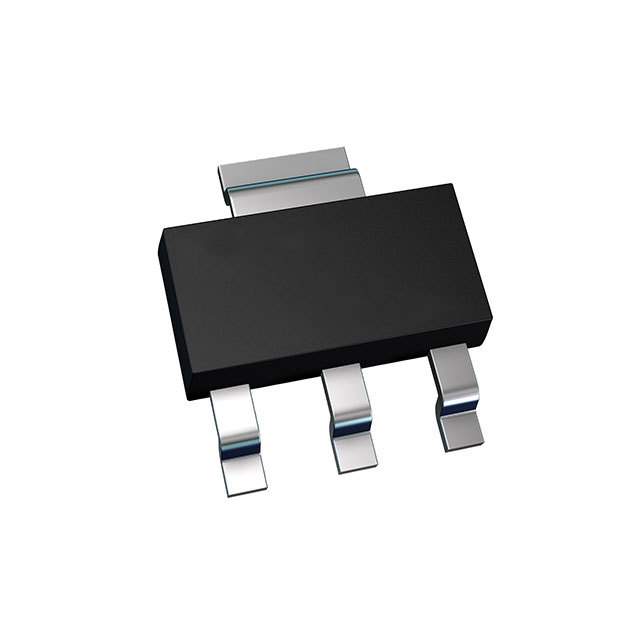

封装 TO-261-4
长度 6.7 mm
宽度 3.7 mm
高度 1.65 mm
封装 TO-261-4
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
