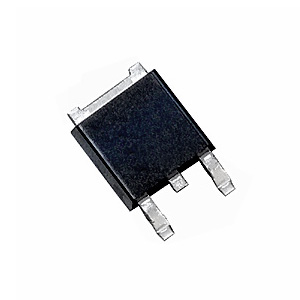

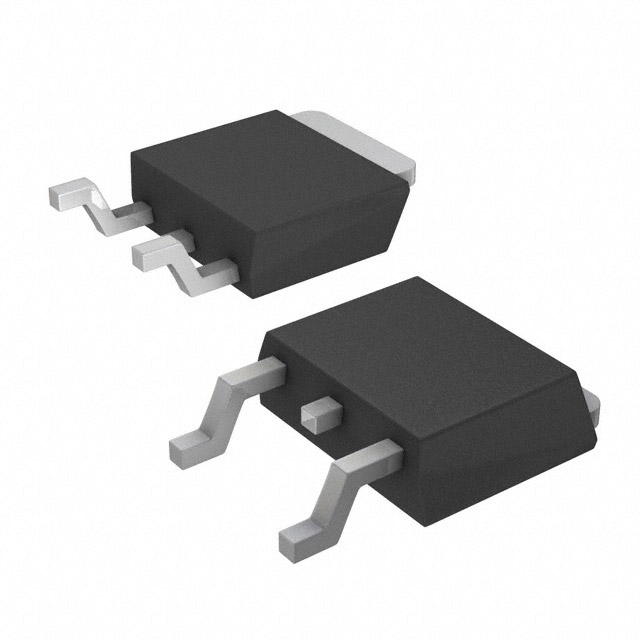

ZXMP4A16KTC 编带
表面贴装型 P 通道 6.6A（Ta） 2.15W（Ta） TO-252-3
得捷:
MOSFET P-CH 40V 6.6A TO252-3
立创商城:
P沟道 40V 6.6A
贸泽:
MOSFET 40V 9.9A P-CHANNEL
艾睿:
Create an effective common drain amplifier using this ZXMP4A16KTC power MOSFET from Diodes Zetex. Its maximum power dissipation is 9500 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device is made with tmos technology. This P channel MOSFET transistor operates in enhancement mode. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C.
Allied Electronics:
MOSFET P-Channel 40V 9.9A DPAK
Verical:
Trans MOSFET P-CH 40V 9.9A Automotive 3-Pin2+Tab DPAK T/R
Win Source:
MOSFET P-CH 40V 6.6A DPAK
DeviceMart:
MOSFET P-CHAN 40V DPAK
额定电压DC -40.0 V
额定电流 -9.90 A
通道数 1
极性 P-CH
耗散功率 9.5 W
阈值电压 1 V
输入电容 965 pF
栅电荷 29.6 nC
漏源极电压Vds 40 V
连续漏极电流Ids 9.90 A
上升时间 6 ns
输入电容Ciss 965pF @20VVds
额定功率Max 2.15 W
下降时间 17.1 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 2.15W Ta
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
长度 6.73 mm
宽度 6.22 mm
高度 2.39 mm
封装 TO-252-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
