双极晶体管 - 双极结型晶体管BJT NPN 20V 4.5A 3-PIN
- 双极 BJT - 单 NPN 20 V 4.5 A 185MHz 1.25 W 表面贴装型 SOT-23-3
得捷:
TRANS NPN 20V 4.5A SOT23-3
立创商城:
NPN 20V 4.5A
贸泽:
双极晶体管 - 双极结型晶体管BJT NPN 20V 4.5A 3-PIN
艾睿:
The NPN ZXTN25020BFHTA general purpose bipolar junction transistor, developed by Diodes Zetex, is the perfect solution for your high-current density needs. This bipolar junction transistor&s;s maximum emitter base voltage is 7 V. Its maximum power dissipation is 1810 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a maximum collector emitter voltage of 20 V and a maximum emitter base voltage of 7 V. This bipolar junction transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C.
安富利:
Trans GP BJT NPN 20V 4.5A 3-Pin SOT-23 T/R
Chip1Stop:
Trans GP BJT NPN 20V 4.5A 1810mW Automotive 3-Pin SOT-23 T/R
Win Source:
TRANS NPN 20V 4.5A SOT23-3
DeviceMart:
TRANSISTOR NPN 20V 4.5A SOT23-3
额定电压DC 20.0 V
额定电流 4.50 A
极性 NPN
耗散功率 1810 mW
上升时间 119 ns
击穿电压集电极-发射极 20 V
集电极最大允许电流 4.5A
最小电流放大倍数hFE 100 @10mA, 2V
额定功率Max 1.25 W
下降时间 61 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 1.25 W
安装方式 Surface Mount
引脚数 3

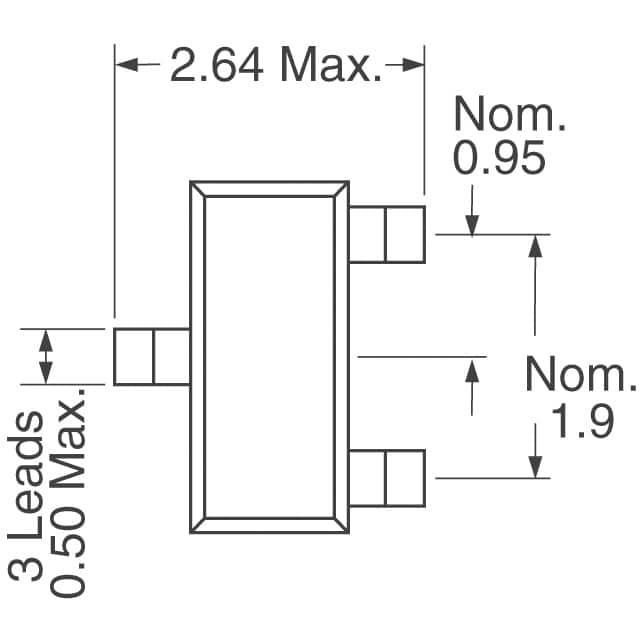

封装 SOT-23-3
长度 3.05 mm
宽度 1.4 mm
高度 1 mm
封装 SOT-23-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
