正 Vin=18V Vout=1.2V~1.2V 1A 80dB@120Hz

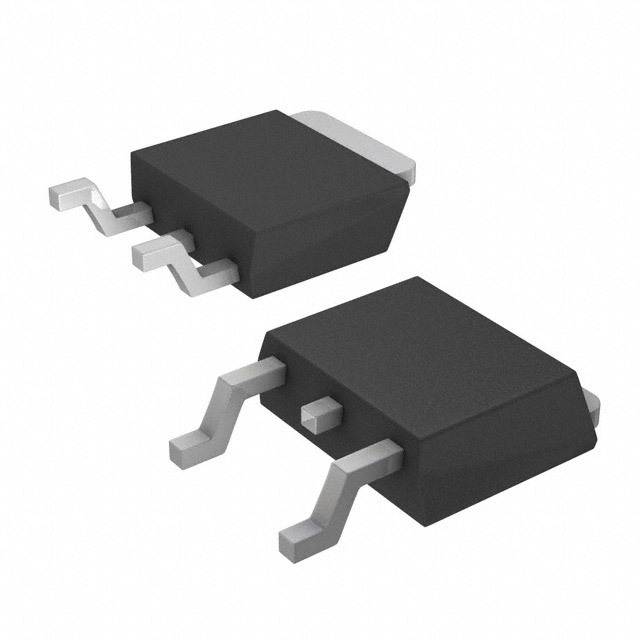

PMIC - 稳压器 - 线性 输出 1A TO-252-3
立创商城:
正 Vin=18V Vout=1.2V~1.2V 1A 80dB@120Hz
得捷:
IC REG LINEAR 1.2V 1A TO252-3
艾睿:
Make a theoretical system actual by providing stable voltages with this LDO ZLDO1117K12TC linear regulator from Diodes Zetex. It has an overall accuracy of ±2 %. This device has a maximum power dissipation of 15000 mW. This voltage regulation device&s;s single output can produce a current up to 1 A. With a small input voltage of 2.7 V and a max of 18 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 1.2 V, this is power management at its best. Its maximum power dissipation is 15000 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. The maximum dropout voltage is 1.35@1A V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
Allied Electronics:
LDO Regulator Pos 1.2V 1A 2+Tab TO252
Chip1Stop:
LDO Regulator Pos 1.2V 1A 3-Pin2+Tab TO-252 T/R
Verical:
LDO Regulator Pos 1.2V 1A Automotive 3-Pin2+Tab TO-252 T/R
DeviceMart:
IC REG LDO 1.2V 1A TO252-3
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.2V 1A TO-252-3
输出接口数 1
输出电压 1.2 V
输出电流 1 A
耗散功率 15 W
跌落电压 1.11V @1A
输入电压Max 18 V
输入电压Min 2.7 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 15000 mW
精度 ±2 %
输入电压 2.7V ~ 18V
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
封装 TO-252-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
