ZRC400 系列 4.096 V ± 1 % 低膝点电流 电压基准 - SOT-23-3
Even in the event of large power supply variations, this voltage reference power management device from Zetex can produce and maintain a precise DC voltage. With an output that has a voltage of 4.096 V, this is power management at its best. It has an initial accuracy of 1%. This voltage reference circuit supports shunt topology. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It runs with a maximum temperature coefficient of 90ppm/°C. This voltage reference circuit has a minimum operating temperature of -40 °C and a maximum of 85 °C.
容差 ±1 %
输入电压DC 4.10 V
输出电压 4.096 V
输出电流 5 mA
供电电流 5.00 mA
通道数 1
针脚数 3
输出电压Max 4.096 V
输出电压Min 4.096 V
输出电流Max 5 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
工作结温Max 85 ℃
精度 1 %
输入电压 4.096 V
安装方式 Surface Mount
引脚数 3

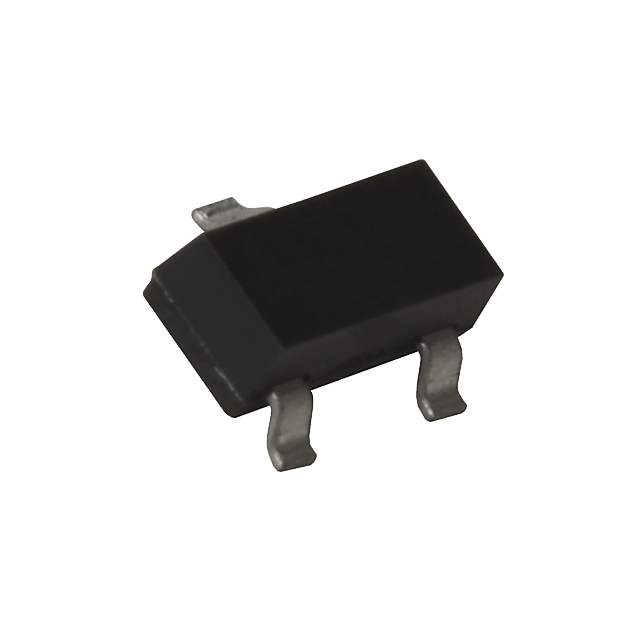

封装 SOT-23-3
长度 3.05 mm
宽度 1.4 mm
高度 1 mm
封装 SOT-23-3
工作温度 -40℃ ~ 85℃
温度系数 ±90 ppm/℃
产品生命周期 Active

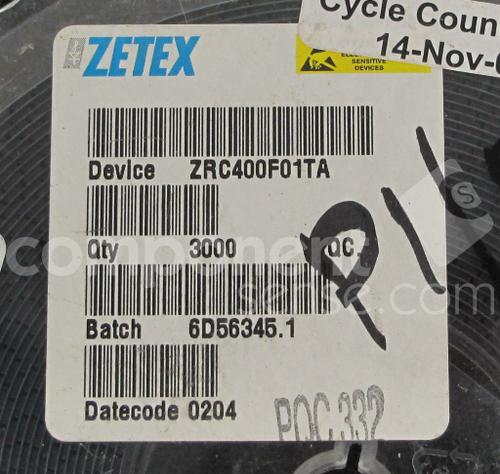

包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ZRC400F01TA Diodes 美台 | 当前型号 | 当前型号 |
ZRC400F03TA 美台 | 完全替代 | ZRC400F01TA和ZRC400F03TA的区别 |
ZRC400F02TA 美台 | 类似代替 | ZRC400F01TA和ZRC400F02TA的区别 |
ZRC400F01TC 威世 | 功能相似 | ZRC400F01TA和ZRC400F01TC的区别 |
