ZXGD3002E6 系列 单通道 9 A 20 V 低压侧 MosFet 栅极驱动器 - SOT-23-6
The is a Non-inverting Single MOSFET Gate Driver capable of driving up to 9A into a MOSFET or IGBT gate capacitive load from supply voltages up to 20V. With typical propagation delay times down to 2ns and rise/fall times down to 11ns this device ensures rapid switching of the power MOSFET or IGBT to minimize power losses and distortion in high current fast switching applications. The ZXGD3002E6 is inherently rugged to latch-up and shoot-through and its wide supply voltage range allows full enhancement to minimize on-losses of the power MOSFET or IGBT. Its low input voltage requirement and high current gain allows high current driving from low voltage controller ICs enables reduced parasitic inductance and independent control of rise and fall slew rates.
电源电压DC 0.00Vmin, 20.0Vmax
上升/下降时间 8.3ns, 10.8ns
输出接口数 1
输出电流 9.00 A
针脚数 6
耗散功率 1.1 W
上升时间 105 ns
输出电流Max 9 A
下降时间 115 ns
下降时间Max 115 ns
上升时间Max 105 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 1100 mW
电源电压Max 20 V
电源电压Min 0 V
安装方式 Surface Mount
引脚数 6

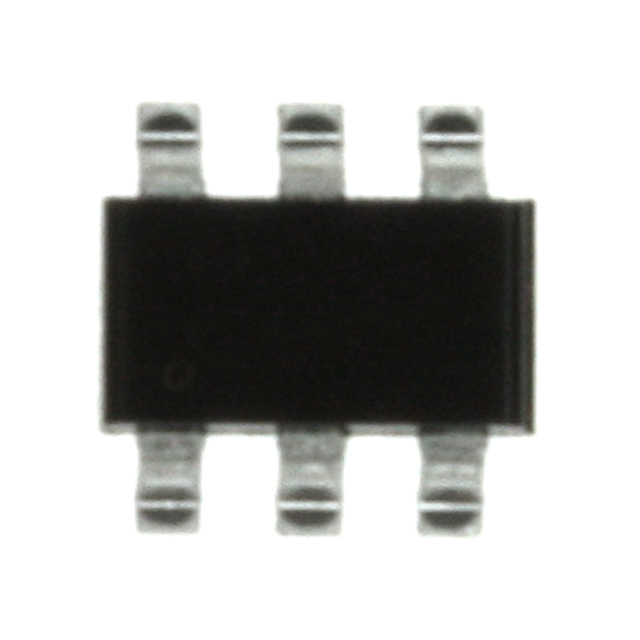

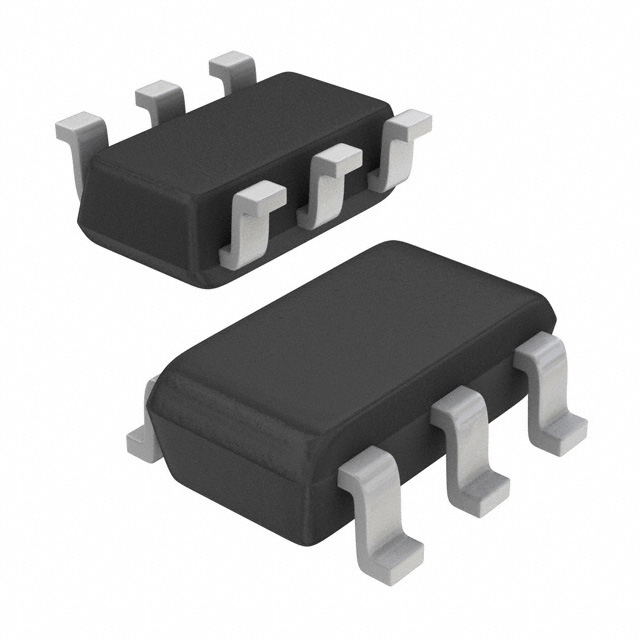

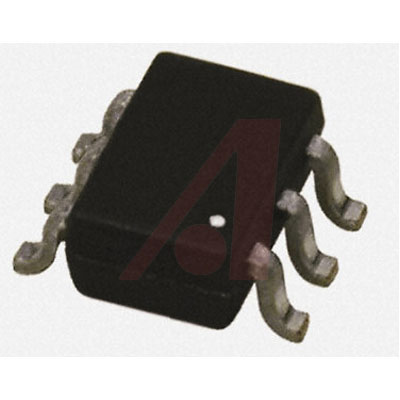

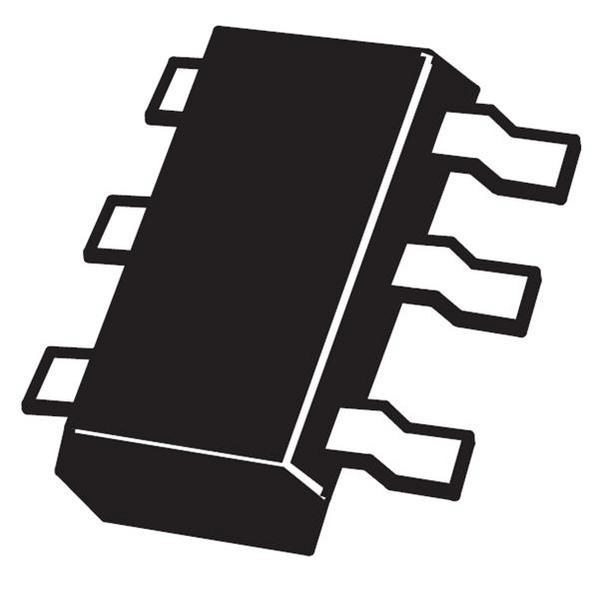

封装 SOT-23-6
封装 SOT-23-6
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 音频, Signal Processing, Audio, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
