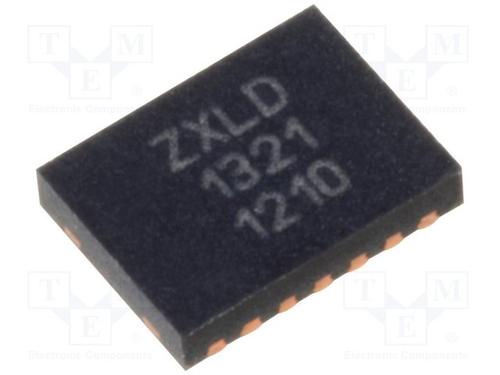

ZXLD1321 系列 1 A 600 kHz 升压模式 DC-DC转换器 用于LED - DFN-14
ZXLD1321 Series 1 A 12 V 600 kHz Boost Mode DC-DC Converter for LED - DFN-14
立创商城:
ZXLD1321DCATC
得捷:
IC LED DRIVER RGLTR DIM 1A 14DFN
贸泽:
开关稳压器 DC-DC Boost Conv 1A output
艾睿:
Adjust the voltage level of your devices with this step up ZXLD1321DCATC DC to DC converter from Diodes Zetex. This converter&s;s single output can produce a current up to 2Typ A. Using the part will provide the power your application needs by requiring a voltage only of 1.2 V and not exceeding a voltage of 12 V. With a fixed output that has a voltage of 18 V and maximum output power of 8 W, this is power management at its best. This converter is 85typ % efficient. To produce a constant current at your output, supply your circuit with a load regulation of 2%/ATyp and line regulation of 0.5%/VTyp. You can operate this at a switching frequency of 600 kHz. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This converter has an operating temperature range of -40 °C to 125 °C.
Allied Electronics:
Conv DCDC Step Up 1.2-12V 14Pin DFNEP
富昌:
ZXLD1321 系列 1 A 600 kHz 升压模式 DC-DC转换器 用于LED - DFN-14
Chip1Stop:
Conv DC-DC Single Step Up 1.2V to 12V 14-Pin DFN EP T/R
TME:
PMIC; DC/DC converter, LED driver; Uoper:1.2÷12V; Uout:18V; DFN14
Verical:
Conv DC-DC 1.2V to 12V Step Up Single-Out 18V 1A 8W 14-Pin DFN EP T/R
儒卓力:
**LEDDr 12V 1A DFN1443 SMD **
DeviceMart:
IC LED DRVR WHITE BCKLGT 14-TDFN
Win Source:
LED Driver IC 1 Output DC DC Regulator Step-Up Boost PWM Dimming 1A Switch 14-DFN-EP 4x3
频率 600 kHz
工作电压 1.2V ~ 12V
输出接口数 1
输出电压 18 V
输出电流 1 A
开关频率 600 kHz
输入电压Max 12 V
输入电压Min 1.2 V
输出功率Max 8 W
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2V ~ 12V
电源电压Max 12 V
电源电压Min 2 V
输入电压 1.2 V
安装方式 Surface Mount
引脚数 14
封装 DFN-14
封装 DFN-14
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
制造应用 背光,照明
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
