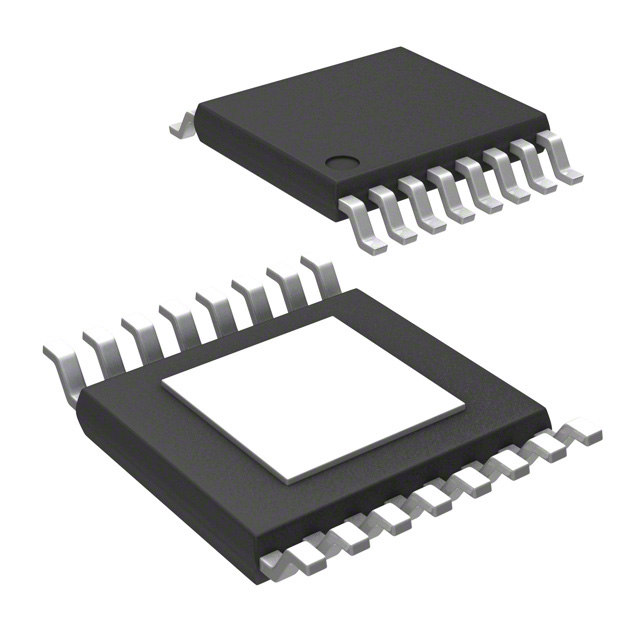

DIODES INC. ZXLD1371EST16TC 发光二极管驱动器, 1输出, 降压, 升压, 降压-升压, 8V-60V输入, 1MHz开关, 18mA输出, TSSOP-16
The is a LED Driver Controller IC for driving external MOSFET to drive high current LEDs. It is a multi-topology controller enabling it to efficiently control the current through series connected LEDs. The multi-topology enables it to operate in buck, boost and buck-boost configurations. The 60V capability coupled with its multi-topology capability enables it to be used in a wide range of applications and drive in excess of 15 LEDs in series. The ZXLD1371 is a modified hysteretic controller using a patent pending control scheme providing high output current accuracy in all three modes of operation. High accuracy dimming is achieved through DC control and high frequency PWM control. The ZXLD1371 uses two pins for fault diagnosis. A flag output highlights a fault, while the multi-level status pin gives further information on exact fault.
频率 300kHz ~ 1MHz
输出接口数 1
输入电压DC 8.00V ~ 60.0V
输出电压 3.2 V
输出电流 18 mA
针脚数 16
开关频率 1 MHz
输入电压Max 60 V
输入电压Min 8 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 8V ~ 60V
安装方式 Surface Mount
引脚数 16
封装 TSSOP-16
封装 TSSOP-16
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 -, 车用, 发光二极管照明
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ZXLD1371EST16TC Diodes 美台 | 当前型号 | 当前型号 |
ZXLD1371QESTTC 美台 | 类似代替 | ZXLD1371EST16TC和ZXLD1371QESTTC的区别 |
