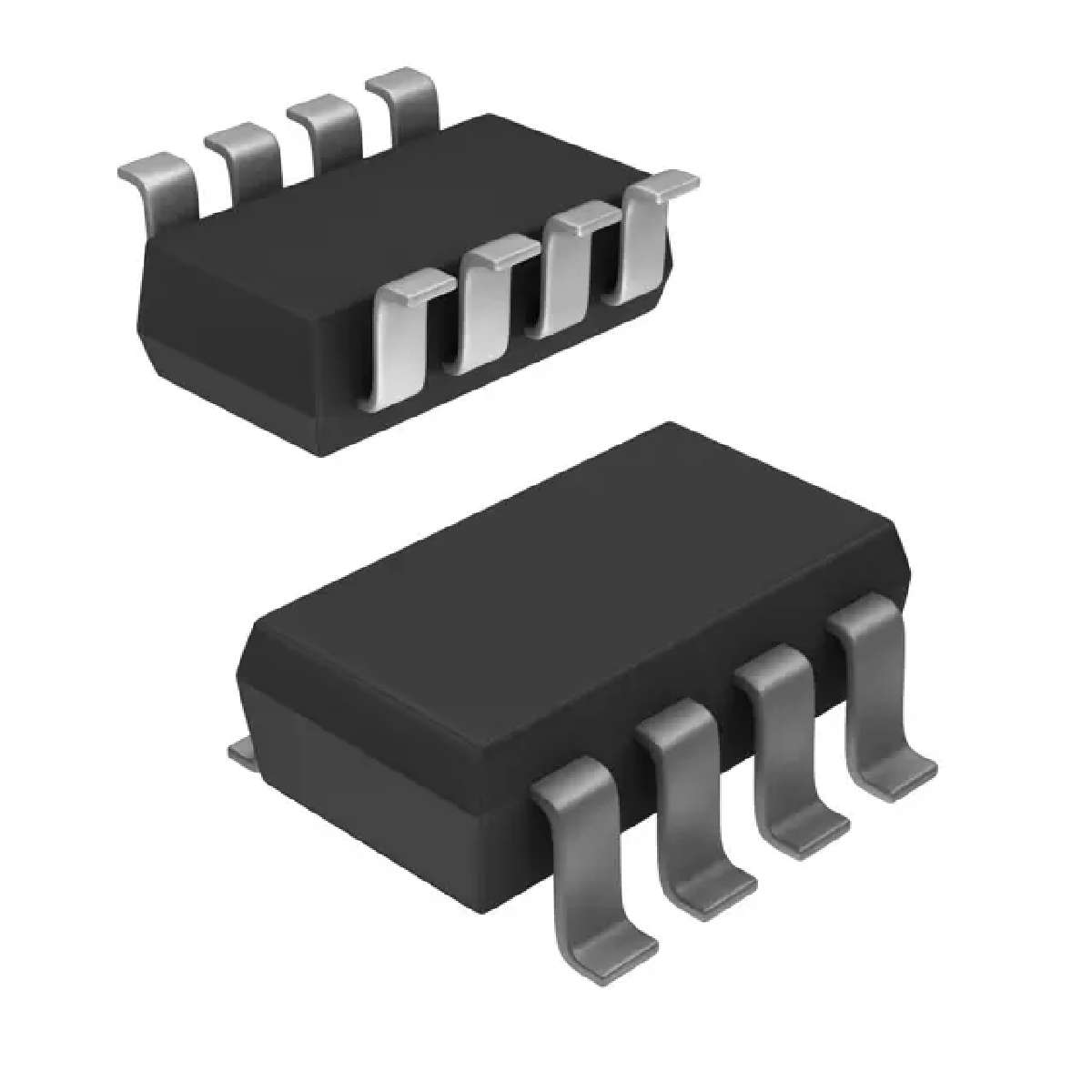

双极晶体管 - 双极结型晶体管BJT Dual 60V PNP
- 双极 BJT - 阵列 2 PNP(双) 60V 2A 140MHz 2.75W 表面贴装型 SM-8
得捷:
TRANS 2PNP 60V 2A SM8
贸泽:
双极晶体管 - 双极结型晶体管BJT Dual 60V PNP
艾睿:
The PNP ZDT751TA general purpose bipolar junction transistor, developed by Diodes Zetex, is the perfect solution for your high-current density needs. This bipolar junction transistor&s;s maximum emitter base voltage is 5 V. Its maximum power dissipation is 2750 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a maximum collector emitter voltage of 60 V and a maximum emitter base voltage of 5 V. This bipolar junction transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C.
安富利:
Trans GP BJT PNP 60V 2A 8-Pin SM8 T/R
Chip1Stop:
Trans GP BJT PNP 60V 2A 8-Pin SM8 T/R
Verical:
Trans GP BJT PNP 60V 2A 2750mW 8-Pin SM8 T/R
DeviceMart:
TRANSISTOR DUAL PNP SOT-223-8
Win Source:
TRANS 2PNP 60V 2A SM8
频率 140 MHz
额定电压DC -60.0 V
额定电流 -2.00 A
极性 PNP
耗散功率 2.75 W
增益频宽积 140 MHz
击穿电压集电极-发射极 60 V
集电极最大允许电流 2A
最小电流放大倍数hFE 100 @500mA, 2V
最大电流放大倍数hFE 70
额定功率Max 2.75 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 2750 mW
安装方式 Surface Mount
引脚数 8
封装 SOT-223-8
长度 6.7 mm
宽度 3.7 mm
高度 1.6 mm
封装 SOT-223-8
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
