DIODES INC. ZXGD3101T8TA 同步整流器控制器, 15V-5V电源, 9.5V输出, SOT-223-8
Switch on or off your high-power transistors with this power driver from Zetex. This device has a maximum power dissipation of 500 mW. Its maximum power dissipation is 500 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This gate driver has a minimum operating temperature of -40 °C and a maximum of 150 °C. This device has a minimum operating supply voltage of 5 V and a maximum of 15 V.
电源电压DC 5.00V min
上升/下降时间 305ns, 20ns
输出接口数 1
输入电压DC 10.0 V
输出电压 9.5 V
输出电流 2.5 A
针脚数 8
耗散功率 500 mW
上升时间 305 ns
输出电流Max 3 A
下降时间 20 ns
下降时间Max 20 ns
上升时间Max 305 ns
工作温度Max 150 ℃
工作温度Min -40 ℃
耗散功率Max 500 mW
电源电压 5V ~ 15V
电源电压Max 15 V
电源电压Min 5 V
输入电压 10 V
安装方式 Surface Mount
引脚数 8

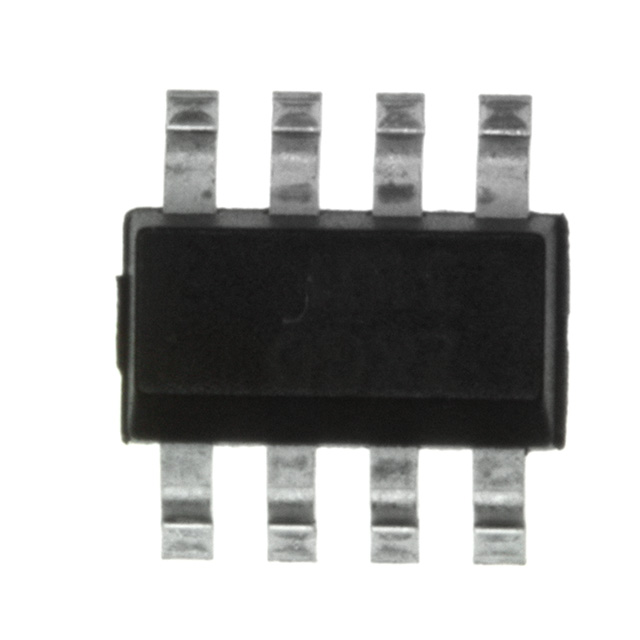

封装 SOT-223-8
封装 SOT-223-8
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
