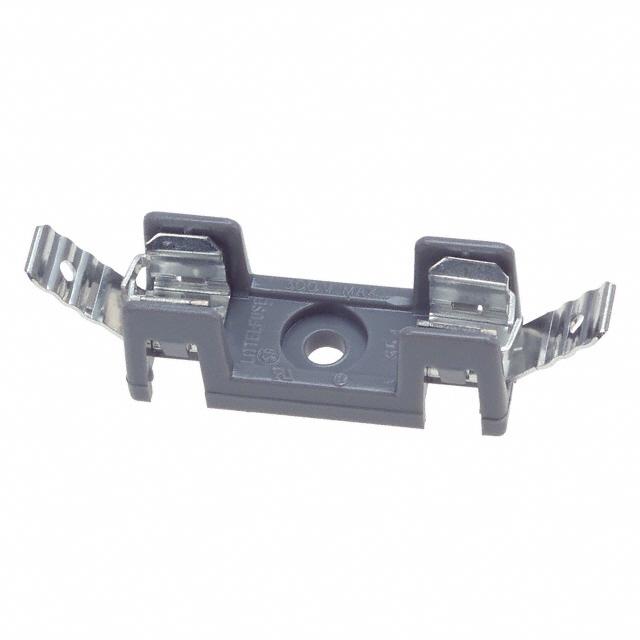

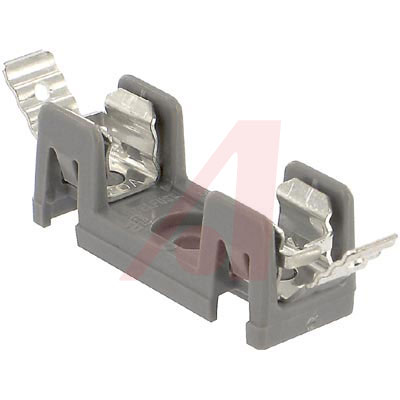

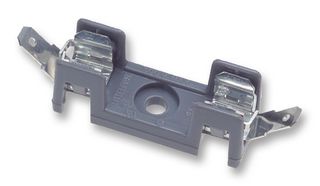

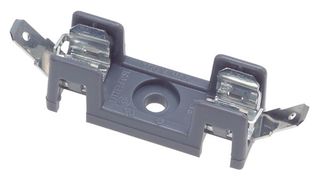

LITTELFUSE 03540801ZXGY 保险丝座, 32X6.3MM
The is a 20A/300V 1-pole low profile Cartridge Fuse Block with glass reinforced thermoplastic construction, tin-plated phosphorus bronze clip and 1/4-inch quick clip terminals. This 354-series fuse block features individual barriers which reinforce the fuse clips while providing greater protection against clip damage and electrical shock. The unique design permits self-alignment of clips to fuse cap. Higher current ratings have been attained using spring brass clips. Compatible with 3AG fuses.
触点电镀 Tin
额定电压DC 300 V
额定电压AC 300 V
额定电流 20 A
电路数 1
易燃性等级 UL 94 V-0
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 300 V
安装方式 Axial, Panel
封装 300
长度 35.6 mm
宽度 12.7 mm
高度 13.97 mm
封装 300
颜色 Gray
触点材质 Phosphor Bronze
材质 Thermoplastic
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 Safety, 安全
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
