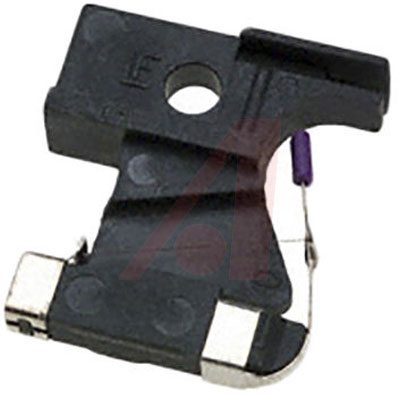

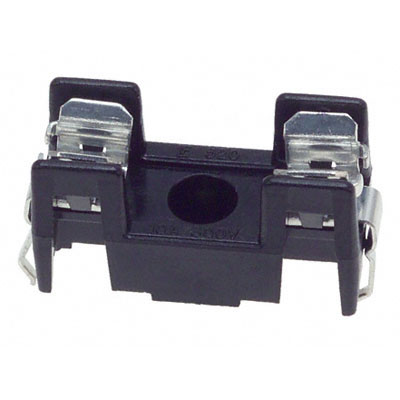

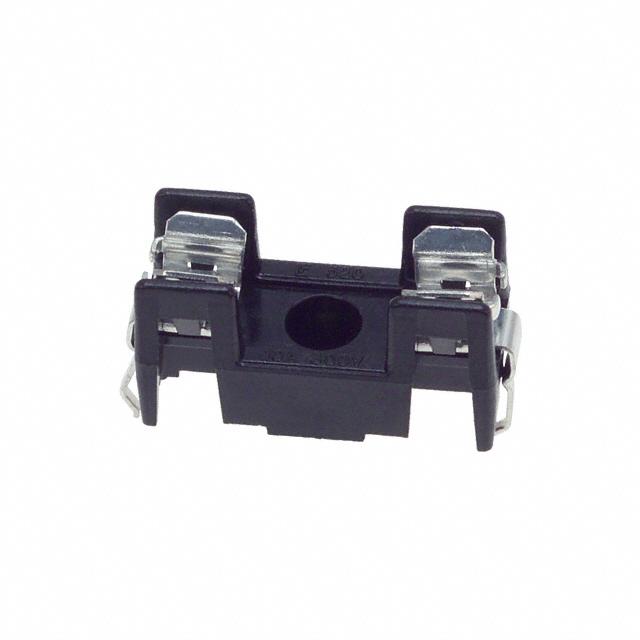

LITTELFUSE 05200101Z 保险丝座, 2X20MM
The is a Cartridge Fuse Holder made of glass reinforced thermoplastic base and tin-plated spring brass clip/terminals. The metric Omni-Blok® fuse block for 5 x 20mm size fuses is a low profile design that is available with pin terminals. The unique design feature provides self-alignment of the clips to the fuse caps. This feature, plus a 1-piece clip/terminal design, assures low contact resistance.
- .
- UL94V-0 Flammability rating
触点电镀 Tin
额定电压DC 300 V
额定电压AC 300 V
额定电流 10 A
电路数 1
易燃性等级 UL 94 V-0
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Through Hole
封装 300
长度 26.16 mm
宽度 10.2 mm
高度 12.7 mm
封装 300
颜色 Black
触点材质 Brass
材质 Brass
产品生命周期 Active
包装方式 Bulk
制造应用 Safety, 安全
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
05200101Z Littelfuse 力特 | 当前型号 | 当前型号 |
05200101ZXX 力特 | 完全替代 | 05200101Z和05200101ZXX的区别 |
