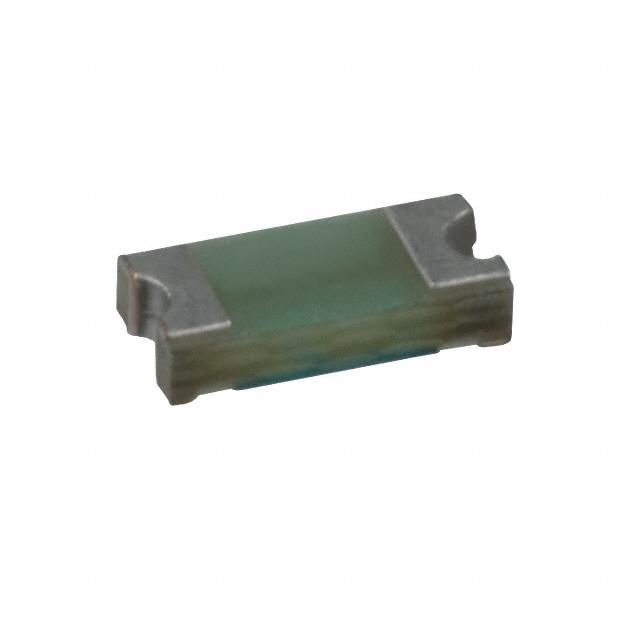

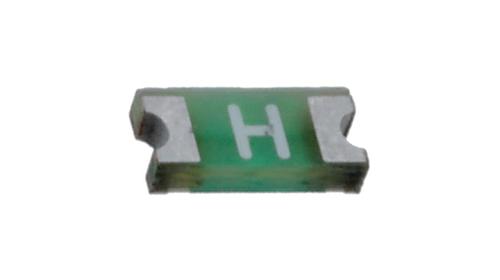

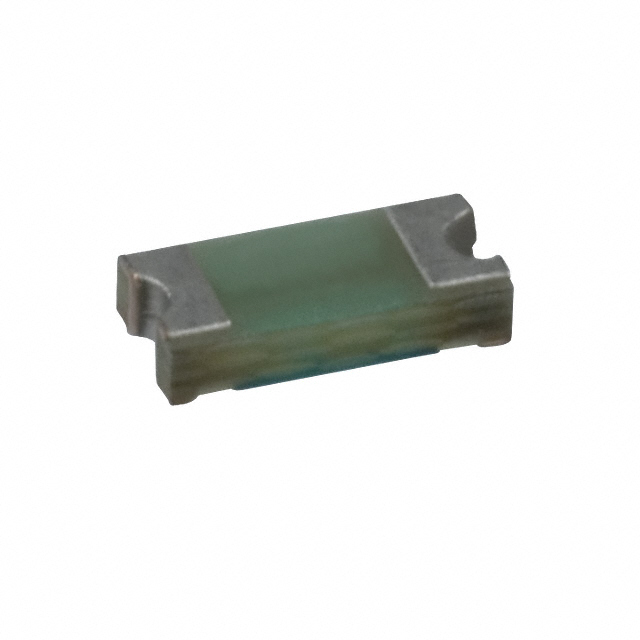

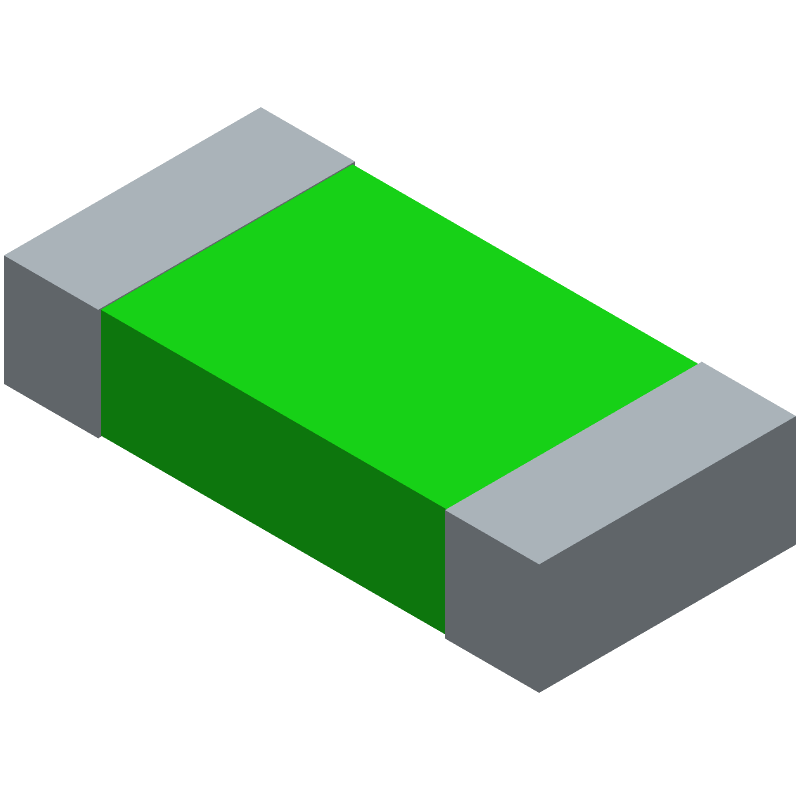

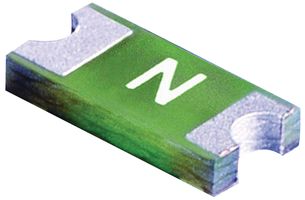

LITTELFUSE 0466002.NR 熔丝, SMD 快速熔断2.0A
额定电流Current Rating| 2A \---|--- 额定电压ACVoltage Rating - AC| 125V 额定电压DCVoltage Rating - DC| 125V 分断能力Interrupting Rating| 50A 熔断积分I2T A2secMelting I²t| 0.53 Description & Applications| •THIN-FILM SURFACE MOUNT •Very Fast-Acting Thin-Film Type 描述与应用| •薄膜表面贴装 •非常快熔型薄膜型
欧时:
Littelfuse 2A电流 FF熔度 表面贴装熔断器 0466002.NR, 3.175 x 1.524 x 0.585mm, 63V ac/dc
立创商城:
2A 63V
艾睿:
A great alternative to a circuit breaker, this a chip 0466002.NR fuse from Littelfuse will protect your electronics. This device has a current rating of 2. This fuse has a minimum operating temperature of -50 °C and a maximum of 90 °C. It has 2 terminals. The 0466002.NR fuse has a solder pad termination style. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.18 mm long, 0.58 mm tall and 1.52 mm deep. The maximum AC voltage rating is 63 VAC and the maximum DC voltage rating is 63 VDC.
Allied Electronics:
FUSE 63V FA LEAD FREE SLIM 1206 2A
Chip1Stop:
Fuse Chip Very Fast Acting 2A 63V SMD Solder Pad 1206 T/R
Verical:
Fuse Chip Very Fast Acting 2A 63V SMD Solder Pad 1206 T/R CSA
Newark:
# LITTELFUSE 0466002.NR Fuse, Surface Mount, 466 Series, 2 A, 63 VAC, 63 VDC, Very Fast Acting, 1206
儒卓力:
**2A 63V very fast 1206 SMD SLIM **
Win Source:
FUSE BOARD MNT 2A 63VAC/VDC 1206
额定电压DC 63 V
额定电压AC 63 V
额定电流 2 A
耗散功率 0.1575 W
电阻 0.03 Ω
工作温度Max 90 ℃
工作温度Min -55 ℃
额定电压 63 V
额定电压DC Max 63 V
额定电压AC Max 63 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.18 mm
宽度 1.52 mm
高度 0.58 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 90℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 便携式器材, 消费电子产品, Consumer Electronics, Safety, Portable Devices, 计算机和计算机周边, Computers & Computer Peripherals, 安全
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0466002.NR Littelfuse 力特 | 当前型号 | 当前型号 |
0466002.NRHF 力特 | 类似代替 | 0466002.NR和0466002.NRHF的区别 |
SF-1206F200-2 伯恩斯 | 功能相似 | 0466002.NR和SF-1206F200-2的区别 |
0466002 力特 | 功能相似 | 0466002.NR和0466002的区别 |
